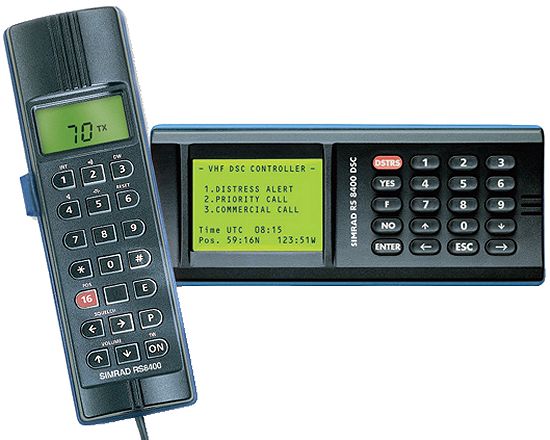

Simrad RS8400

Type: Professional Marine Transceiver
Frequency Range: All intl./USA (incl WX) channels (54+10)
153.9-163.1 MHz
Modes: FM
RF Power Output: Hi: 25 W
Lo: 1 W
Sensitivity: 0.3 uV (12 dB SINAD)
Selectivity: N/A
Image rejection: N/A
Voltage: 10.8-15.6 VDC
Current Drain: RX: 150 mA
TX: Max 5 A
Aerial Input: 50 ohms
Dimensions (W*H*D): Main unit: ? mm
Handset: ? mm
Weight: Main unit: 1 Kg
Handset: 250 gr
Manufactured: 200x-200x
Other: DSC and scanning. GPS interface (NMEA)
