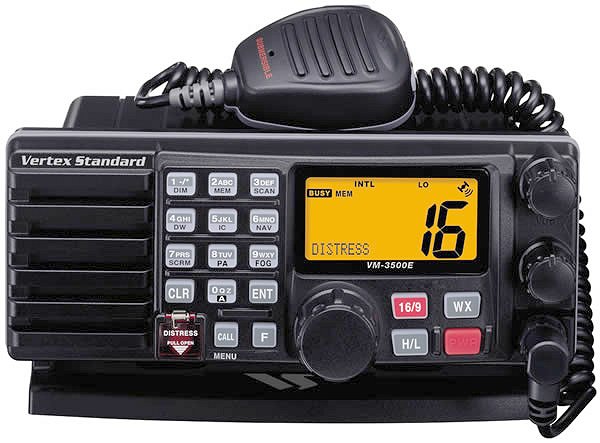

Vertex Standard VM-3500E

Type: Professional Marine Transceiver
Frequency Range: TX: 156.025-157.425 MHz
RX: 156.050-163.275 MHz
Modes: FM
RF Power Output: Hi: 25 W
Lo: ? W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC +/- 20%
Current Drain: RX: 0.5-1.5A
TX: 1.5-5 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 230*90*150 mm
Weight: 1.45 Kg
Manufactured: 2004-200x
Other: 70 channels. DSC class D
