BC-348 (US Army, WWII)

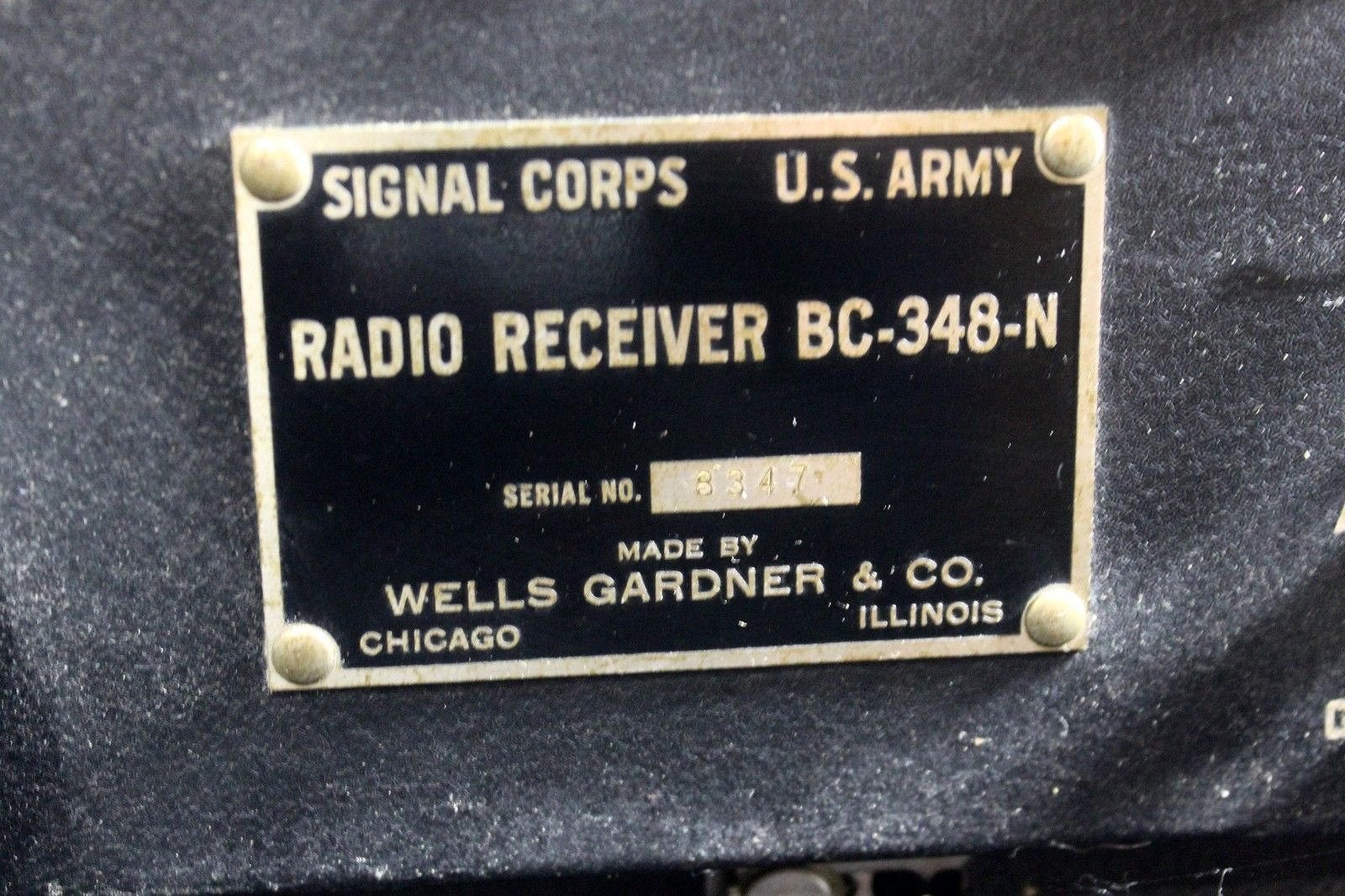

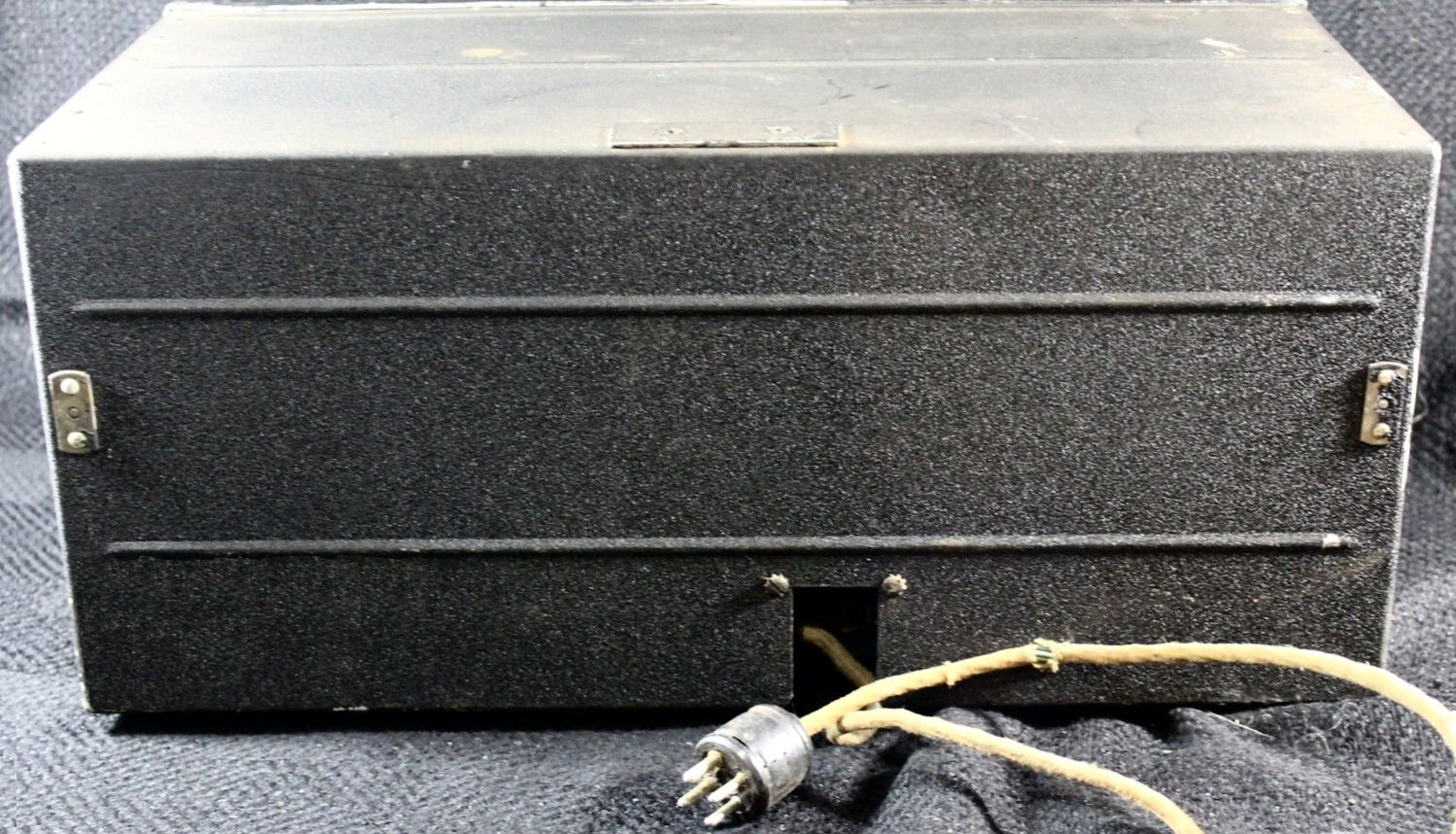

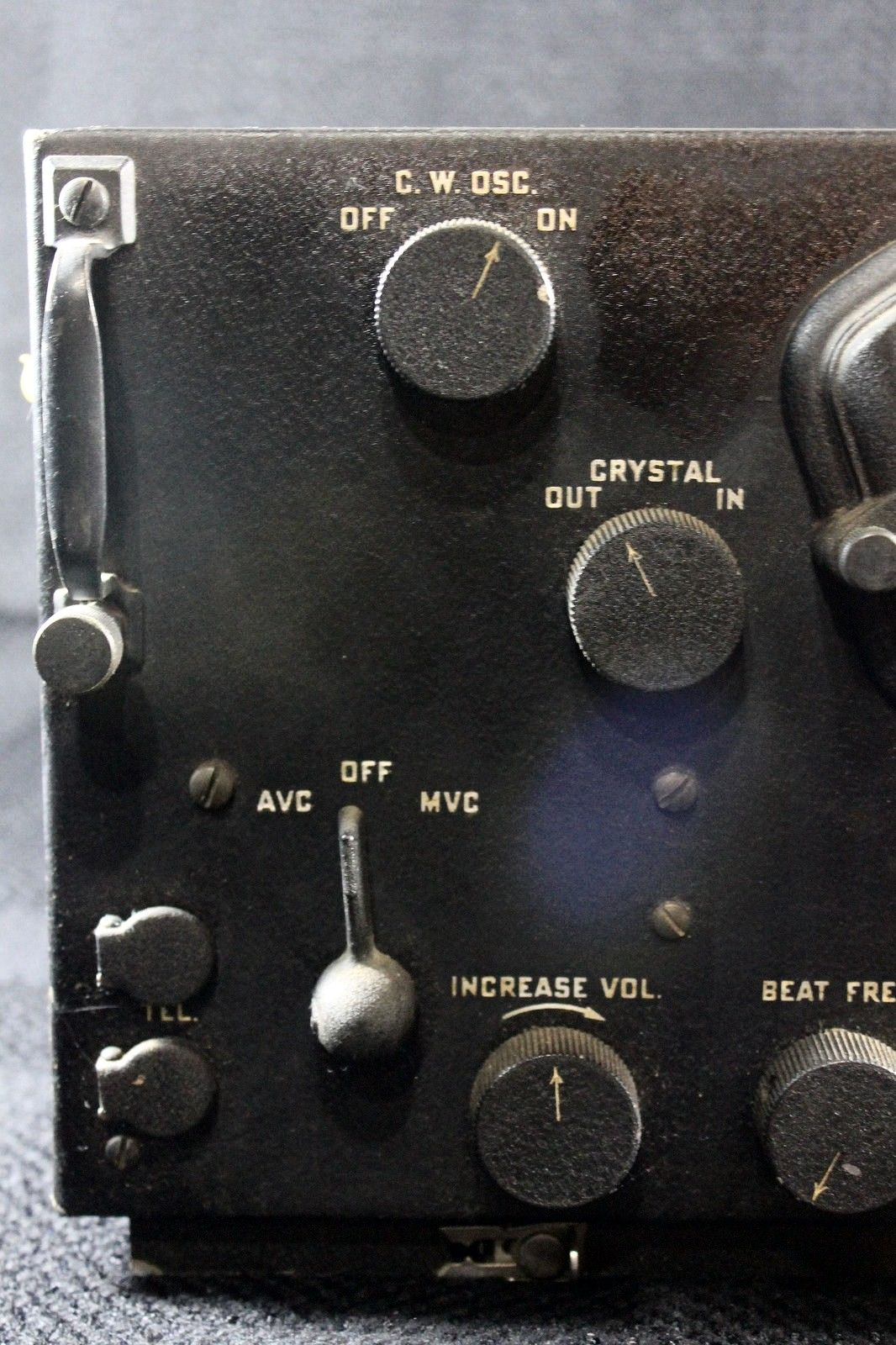

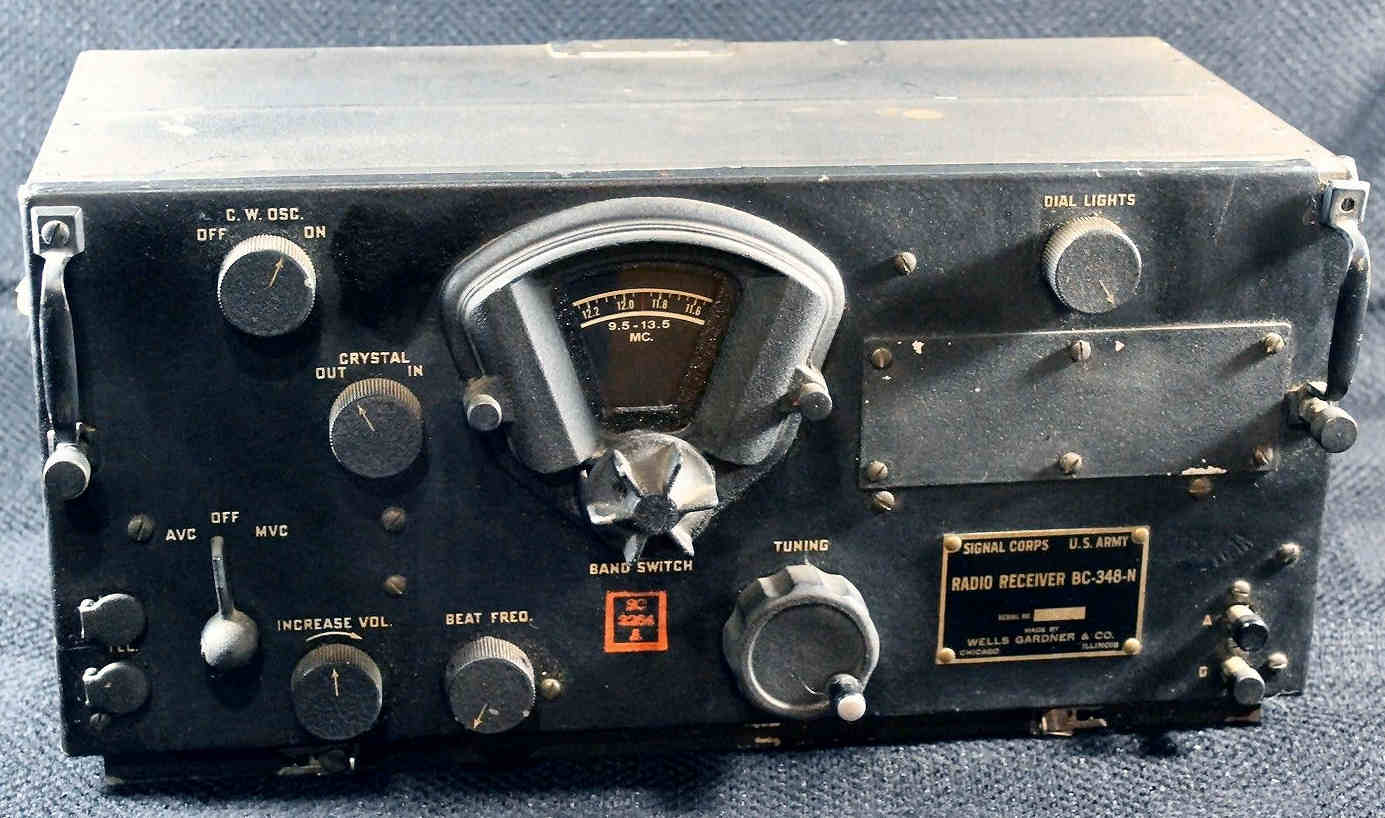

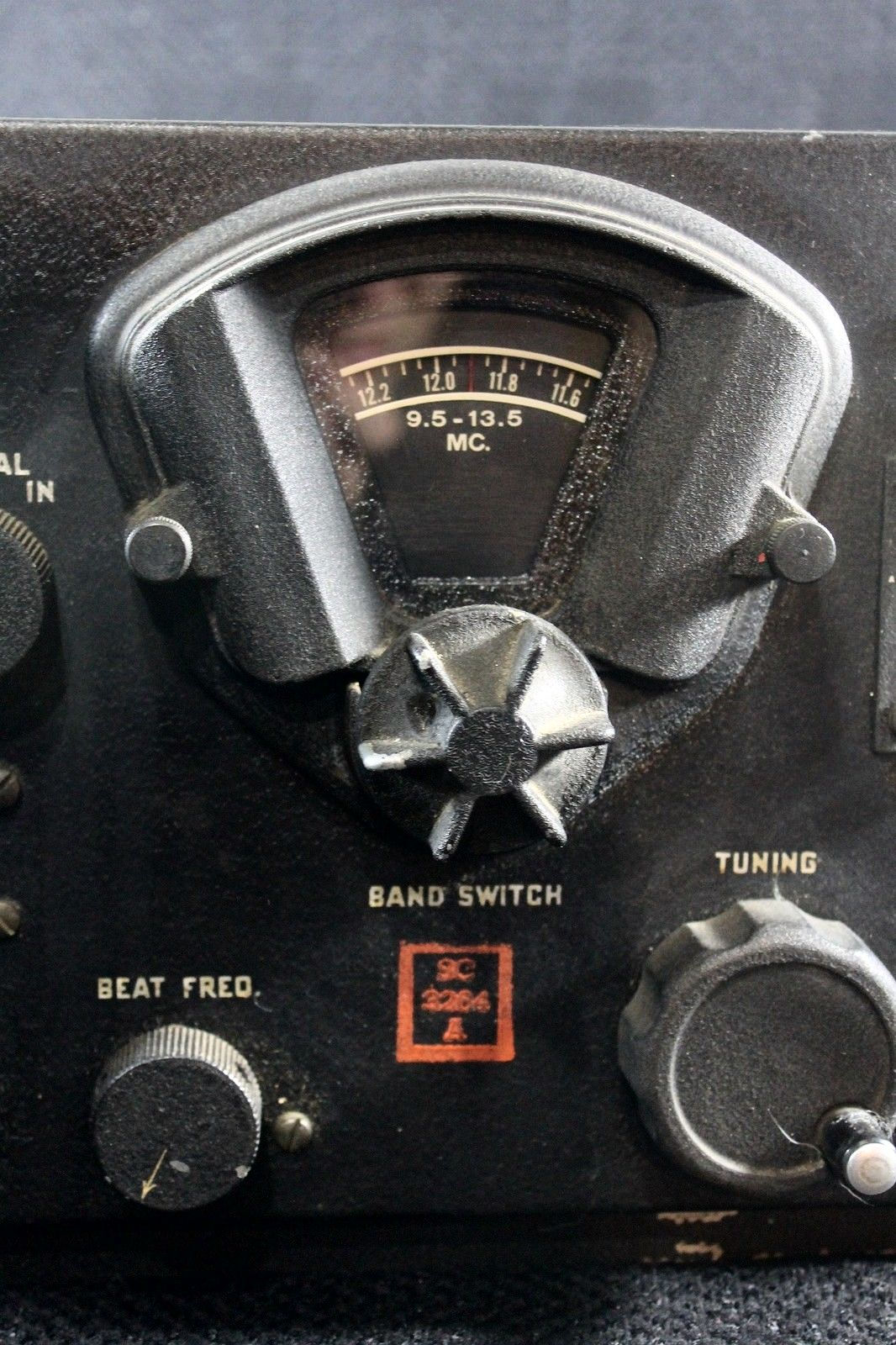

These picures show the BC-348-N version made by Wells Gardner
Type: Military Radio Equipment
Frequency Range: 0.2-0.5 / 1.5-18 MHz in six bands
Mode: AM/CW
Voltage: 28 VDC
Current Drain: Max 3 A
Aerial Input: ? ohms
Dimensions (W*H*D): 18 x 9.5 x 10.5"
Weight: 44 Lbs
Manufactured: USA, 194x-194x
Other: Made by Wells-Gardner, Also in Several Versions by Other Manufacturers including:,
Belmont Radio, RCA and Stromberg-Carlson
Surplus price 1947 in the US: $49.50
Related Documents: Schematic (69 Kb)
