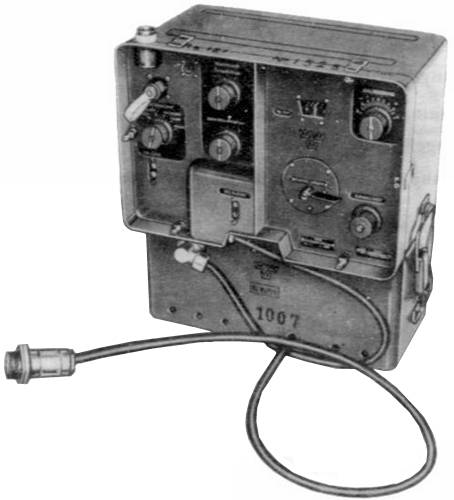

Ra 121

Type: Military Radio Equipment
Frequency Range: 39.6-48 MHz (100 KHz steps)
Mode: FM
RF Power output: 3 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 12/24 VDC or 220 VAC
Current Drain: RX: 1.8 A
TX: 3.3 A (@ 12 VDC)
Aerial Input: Fibreglass whip, 1.18 m
Dimensions (W*H*D): 278*201*170 mm
Weight: 4.1 Kg
Manufactured: Sweden, 19xx-19xx
Other: 85 channels
