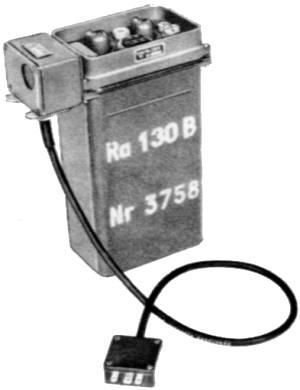

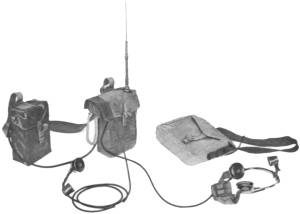

Ra 130 (Sweden)

Type: Military Radio Equipment
Frequency Range: 40-43 MHz (4 channels)
Mode: FM
RF Power output: 0.25 W
Voltage: 1.5 and 90 VDC
Current Drain: RX: 13 mA (Anode) and 0.46 A (Heater)
TX: 40 mA (Anode) and 0.72 A (Heater)
Aerial Input: ? ohms
Dimensions (W*H*D): Transceiver: 200*250*90 mm
Battery pack: 160*280*90 mm
Weight: Transceiver: 3.1 Kg
Battery pack: 2.2 Kg
Manufactured: Sweden, 19xx-19xx
Other: Valves
