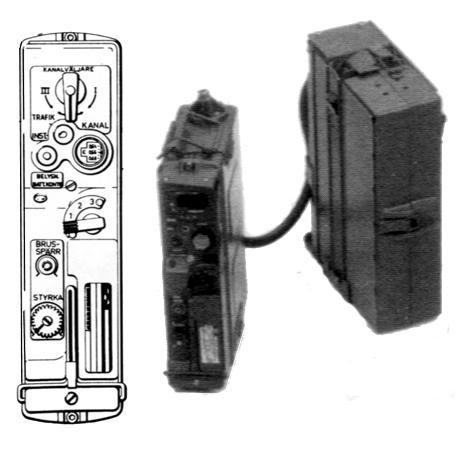

Ra 140 (Sweden)

Type: Military Radio Equipment
Frequency Range: 30-77.95 MHz (50 KHz steps)
Mode: FM
RF Power output: Hi: 2.5 W, Mid: 0.7 W, Lo: 10 mW
Voltage: 12-18 VDC?
Current Drain: RX: ? A, TX: ? A
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): ? mm
Weight: 7.4 Kg (with battery pack)
Manufactured: Sweden, 19xx-19xx
Other: 960 channels
