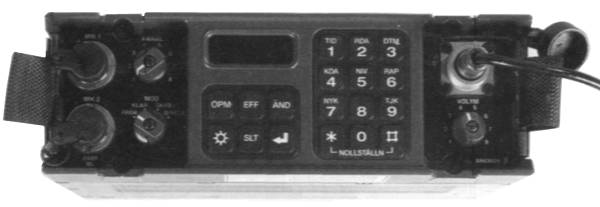

Ra 180 (Sweden)

Type: Military Radio Equipment
Frequency Range: 30-88 MHz (25 KHz steps)
Mode: Digital encrypted (MSK) or analog FM
RF Power output: Hi: 5 W, Lo: 25 mW
50 W with mobile option
Voltage: 12 VDC battery or 10-32 VDC external
Current Drain: RX: ? A, TX: ? A
Aerial Input: ?
Dimensions (W*H*D): ? mm
Weight: 10 Kg (portable), 17 Kg (mobile)
Manufactured: Sweden, 19xx-19xx (By Ericsson)
Other: 2320 channels. Portable or mobile configuration
In service 1996. Current status unknown
Related Documents: Ra 180 with mobile consol
