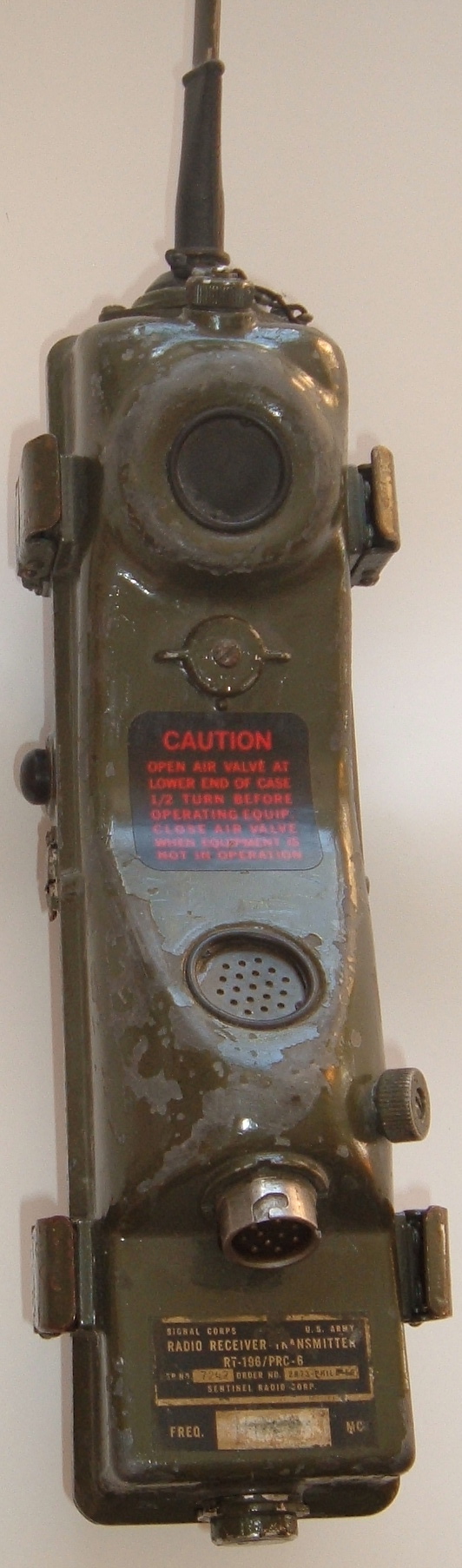

Raytheon RT-196/PRC-6 (AN/PRC-6) (USA)

Type: Military Radio Equipment
Frequency Range: 47-55.4 MHz
Mode: FM
RF Power output: Max 250 mW
Voltage: +1.5, -4.5, +45 and +90 VDC

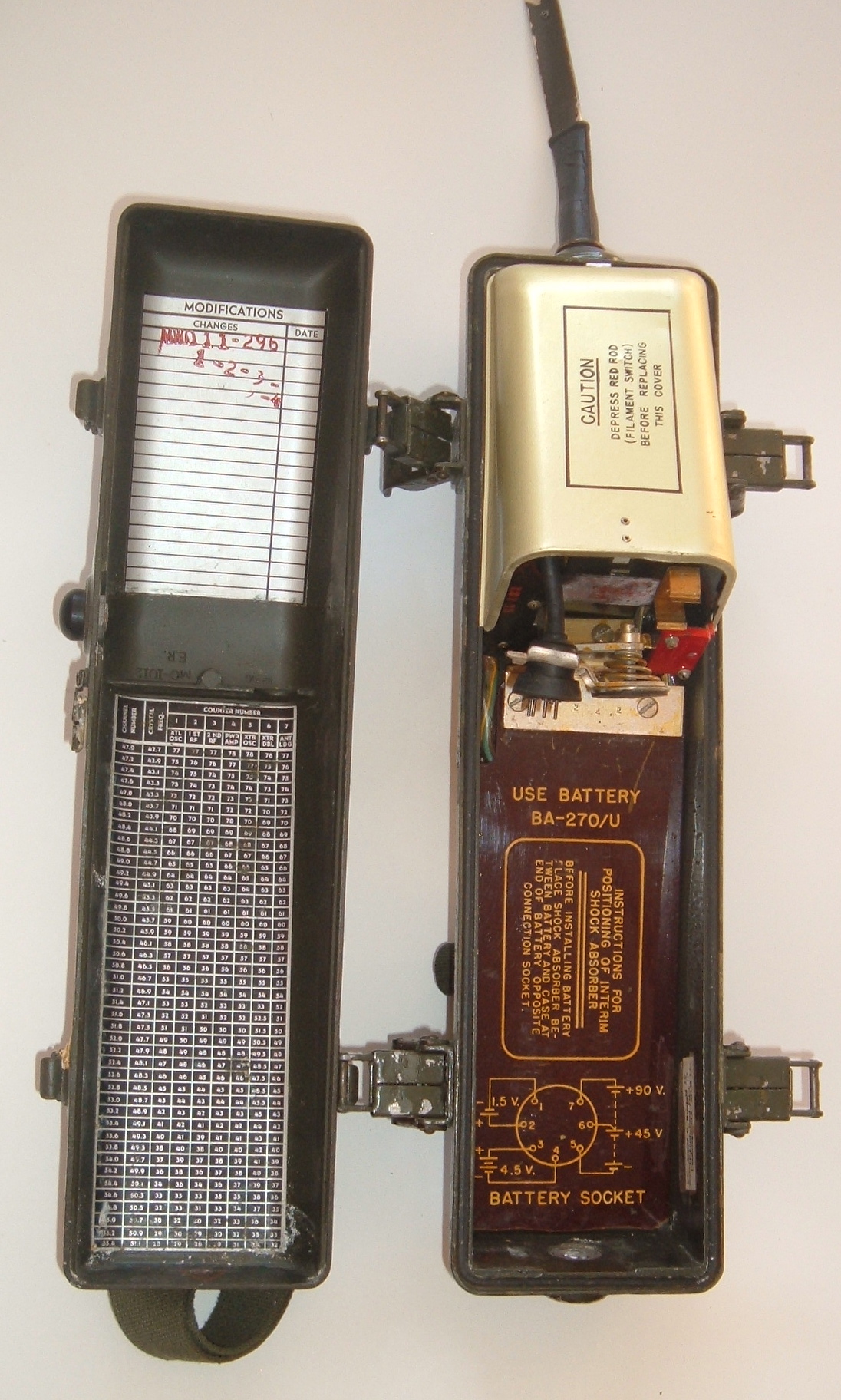

(Internal BA-270/U battery pack)
Current Drain: RX: Max 500 mA
TX: Max 1.5 A
Aerial Input: 50-75 ohms, BNC
Dimensions (W*H*D): N/A
Weight: N/A
Manufactured: USA, 194x-195x (Discontinued)
Other: In use during the Korean and Vietnam wars
One single Crystal-Controlled channel
13 subminiature vacuum Valves
