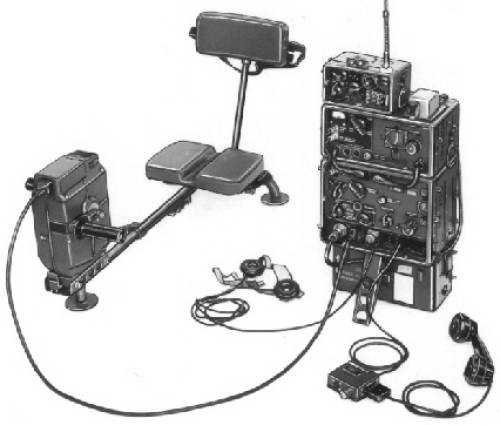

Ra 200

Type: Military Radio Equipment
Frequency Range: 2-8 MHz
Mode: AM/CW
RF Power output: Hi: 8 W, Lo: 0.5 W
Voltage: 7.5 VDC
Current Drain: RX: 1.8 A, TX: 3.3 A (12 VDC)
Aerial Input: Fibreglass whip
Dimensions (W*H*D): 277*186*196 mm (TX), 277*217*196 mm (RX)
Weight: 4 Kg (TX), 6.9 Kg (RX)
Manufactured: Sweden, 195x-195x (late fifties)
Other: Waterproof and submersible. Valves
