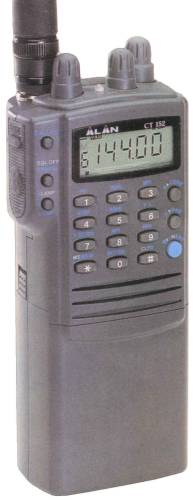

Alan CT-152

Type: Amateur Transceiver
Frequency Range: TX: 144-146 MHz (130-175 MHz)
RX: 58-175 MHz
Mode: TX: FM
RX: AM/FM
RF Power output: Hi: 5 W, Mid: 2.5 W, Lo: 0.35 W
Voltage: 5-16 VDC
Current Drain: RX: 12-? mA
TX: Max 1.3 A
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 48*68*30 mm (battery excluded)
Weight: 180 gr (without battery and antenna)
Manufactured: 199x-199x
Other: VOX, CTCSS
