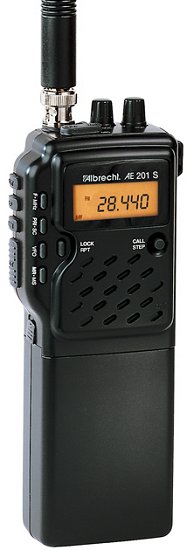

Albrecht AE-201S
| Type: |
Amateur Transceiver |
| Frequency Range: |
28.0-29.7 MHz |
| Mode: |
AM/FM/SSB |
| RF Power output: |
AM/FM Hi: 4 W, Lo: 1 W
SSB Hi: 7 W, Lo: 1 W |
| Sensitivity: |
AM/FM: 1 uV (10 dB S/N)
SSB: 0.8 uV (10 dB S/N) |
| Selectivity: |
N/A |
| Image rejection: |
>70 dB |
| Voltage: |
7.2-13.8 VDC |
| Current Drain: |
RX: 50-? mA
TX: Max 1.2 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
63*169*39 mm |
| Weight: |
400 gr |
| Manufactured: |
200x-200x |
| Other: |
|
| Related Documents: |
User Manual (328 KB) |
|
