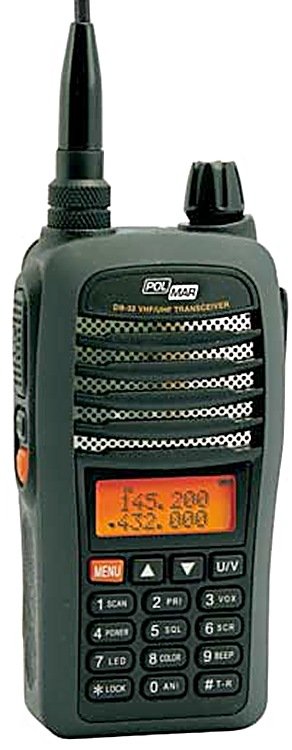

| Type: | Amateur VHF/UHF Transceiver |
| Frequency Range: | RX: 88-108 MHz
TX: 144-146/430-440 MHz |
| Modes: | FM |
| RF Power output: | Hi: 5/4 W Lo: 0.5/0.5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 7.4 VDC (1500 mAH Li-Ion pack) |
| Current Drain: | RX: ?? TX: ?? |
| Aerial Input: | 50 ohms, SMA-Male |
| Dimensions (W*H*D): | 55 × 115 × 31 mm |
| Weight: | ?? |
| Manufactured: | China, 2010-201x |
| Other: | 128 Memory Channels 25 Radio Receiver Memories |
| Related Documents: | Manual (1.17 MB) |
