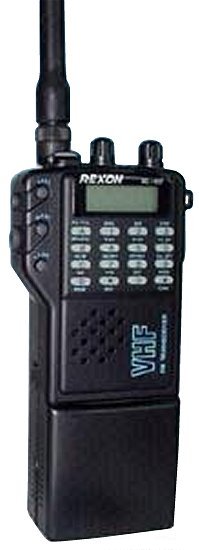

| Type: | Amateur VHF Transceiver |
| Frequency Range: | TX: 144-146 MHz (Europe) TX: 144-148 MHz (USA) RX: 130-170 MHz 5 / 10 / 12.5 / 20 / 50 KHz steps |
| Mode: | FM |
| RF Power output: | Hi: 2-5 W (depending on voltage) Mid: 2-2.5 W Lo: 0.35 W |
| Sensitivity: | <0.16 uV (12 dB SINAD) |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 7.2 VDC battery pack or 5-16 VDC external |
| Current Drain: | RX: 35 mA (standby) TX: 350-950 mA |
| Aerial Input: | 50 ohms, BNC |
| Dimensions (W*H*D): | 65*152*34 mm (with battery) |
| Weight: | 300 gr (with battery and antenna) |
| Manufactured: | xxxx-xxxx |
| Other: | 21 memories |
| Related Documents: |
