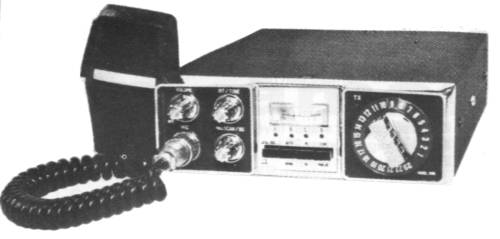

| Type: | Amateur Transceiver |
| Frequency Range: | 144-146 MHz |
| Mode: | FM |
| RF Power output: | Hi: 10 W, Lo: 1 W |
| Voltage: | 13.8 VDC |
| Current Drain: | RX: Max 600 mA, TX: Max 2.5 A |
| Aerial Input: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 175*70*240 mm |
| Weight: | 2.4 Kg |
| Manufactured: | 1978-19xx |
| Other: | 23 + 4 channels. XTAL |
| Related Documents: |
