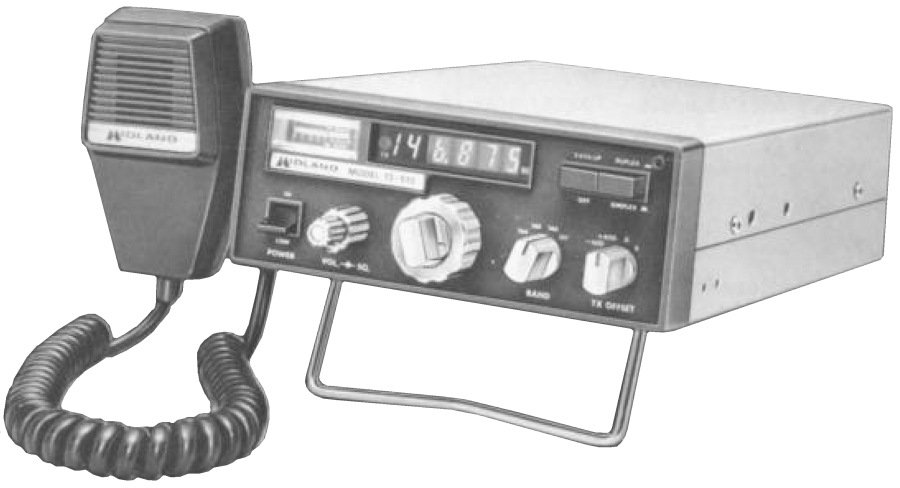

Midland 13-510
| Type: |
Amateur Transceiver |
| Frequency Range: |
144-148 MHz (5 KHz Steps) |
| Modes: |
FM (15 KHz BW) |
| RF Power output: |
Hi: 25 W
Lo: 1 W |
| Sensitivity: |
0.3 uV (12 dB S+N/N) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC +/-15% |
| Current Drain: |
RX: 800 mA (Average)
TX: 2-7 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
?? mm |
| Weight: |
3 Kg |
| Manufactured: |
197x-197x (Discontinued) |
| Other: |
12 channels, XTAL
Independantly selectable RX and TX channel.
|
| Related Documents: |
User Manual (6.34 MB) |
|
