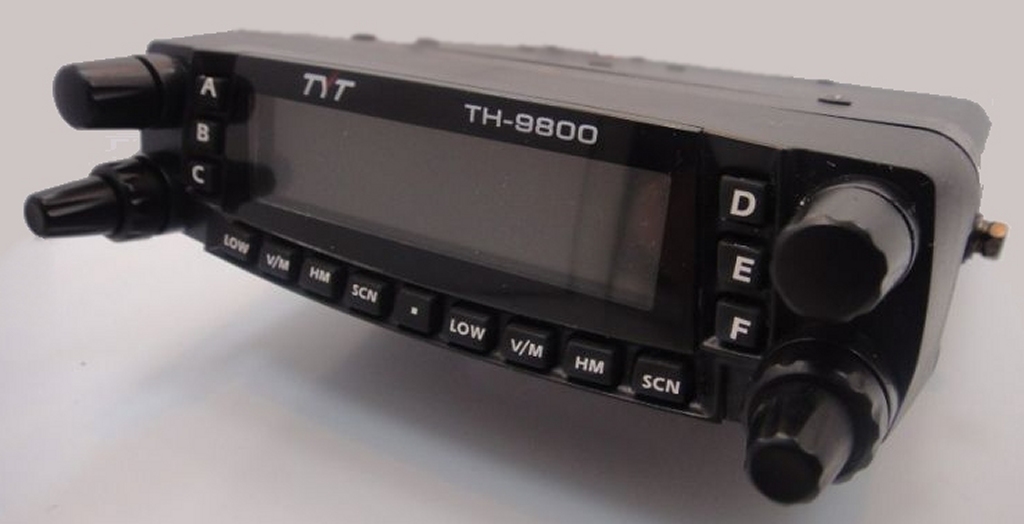

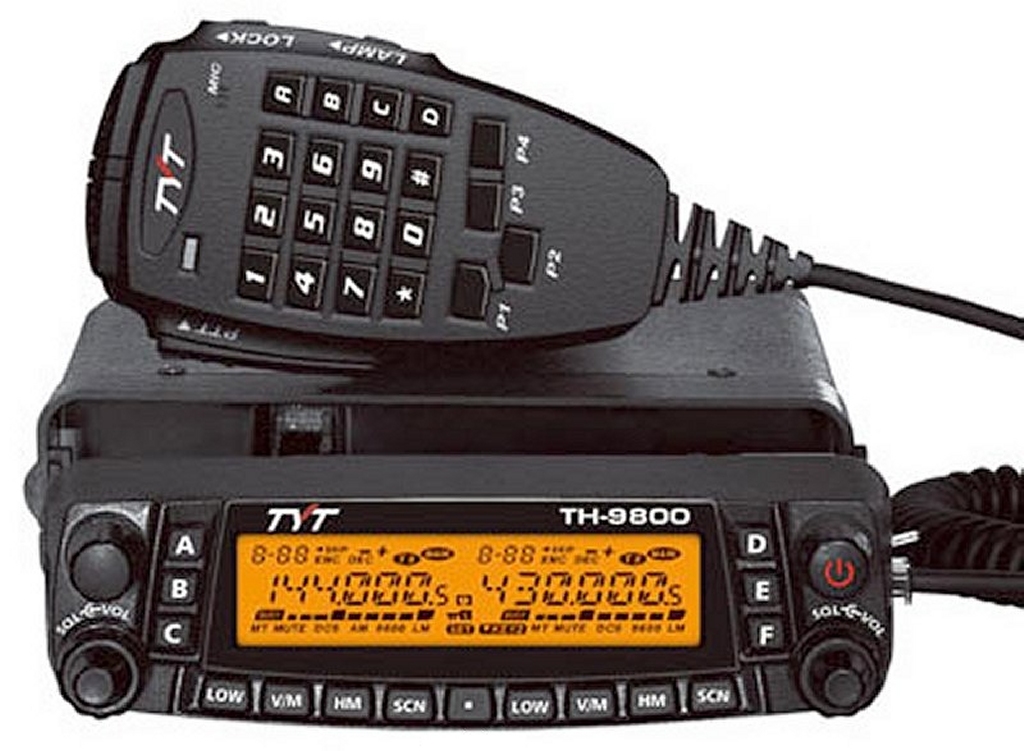

TYT TH-9800
| Type: |
Amateur Transceiver |
| Frequency Range: |
TX: 28-29.7 / 50-54 / 144-146 (or 144-148) / 430-440 (or 430-450) MHz
RX: 28-29.7 / 50-54 / 108-180 / 320-480 MHz |
| Modes: |
FM |
| RF Power output: |
50/20/10/5W |
| Memories: |
809 |
| Frequency Steps: |
5, 10, 12.5, 15, 20, 25, 50 kHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 500 mA
TX: Max 8.5 A |

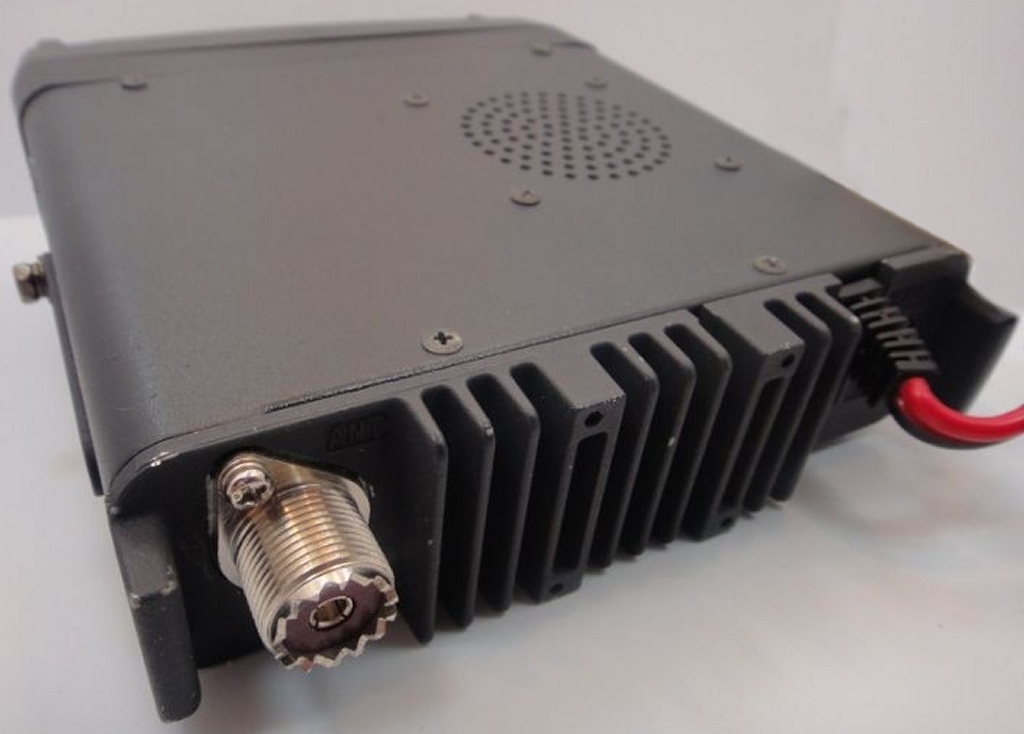

| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140 x 41.5 x 168 mm |
| Weight: |
1 Kg |
| Manufactured: |
China: 2012-20xx |
| Other: |
CTCSS/PL and DCS. Built-in Scrambler
|
