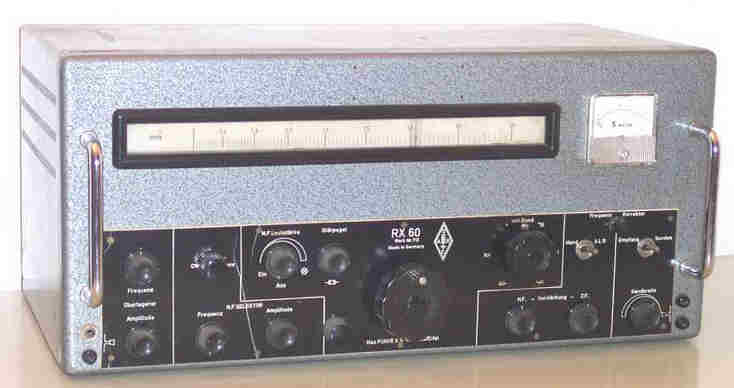

Funke RX-60 (Max Funke KG, Adenau)

Type: HF Receiver
Frequency Range: 10-80 m
Modes: AM/CW
Memory Channels: N/A
Search Banks: N/A
Priority Channels: N/A
Scan Speed: N/A
Search Speed: N/A
Increment Steps: N/A
Scan Delay: N/A
Voltage: Mains
Current Drain: ?
Aerial Input: 60 ohms
Dimensions (W*H*D): 550*260*280 mm
Weight: 25 Kg
Manufactured: West Germany, 1960-19xx
Other: RF gain, IF gain, BW control, Q-multiplier,
NB, 100 KHz marker
New price 1960 in W.Germany: DM 970

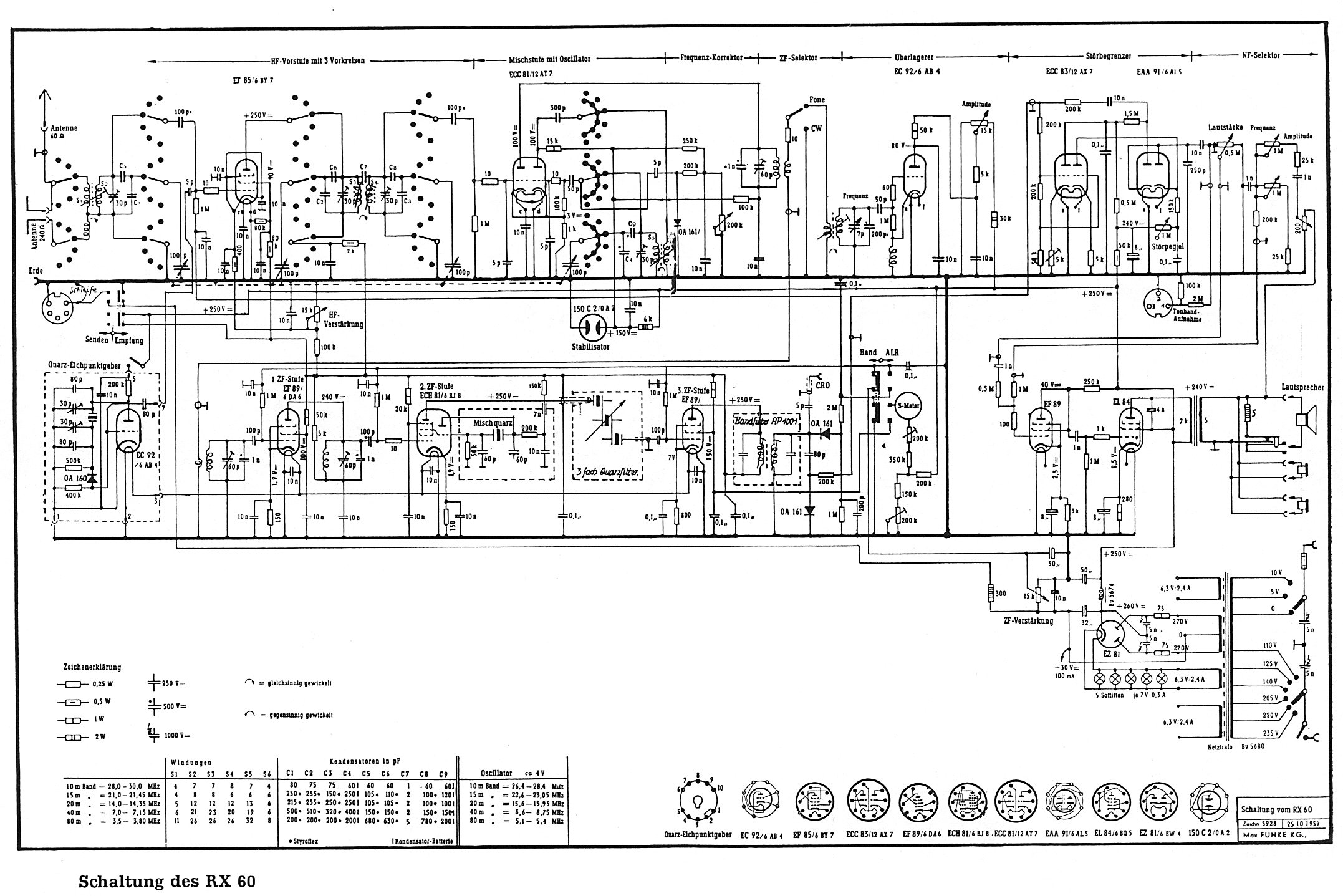

Related Documents: Schematics (563 KB)
