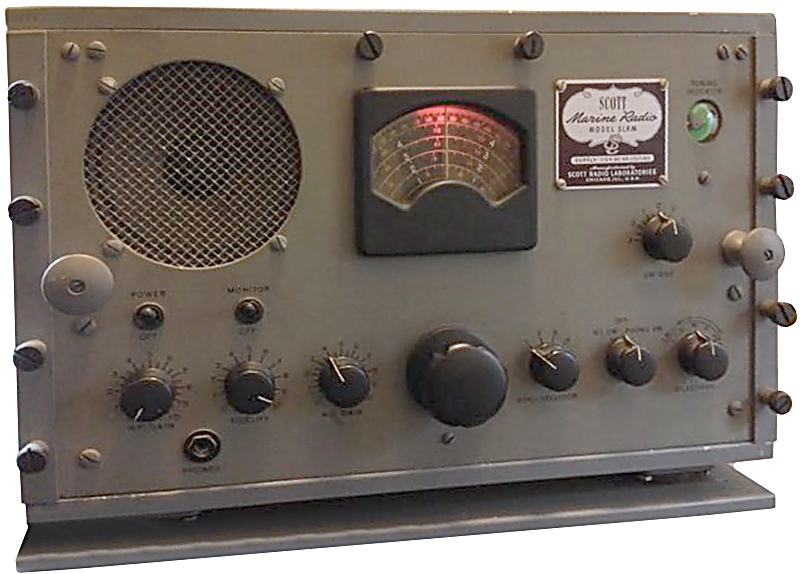

Scott Marine SLR-M


Type: HF Receiver
Frequency Range: 1: 0.54-1.6 MHz
2: 1.35-3.58 MHz
3: 3.4-8.9 MHz
4: 8.5-18.6 MHz
Modes: AM/CW
Memory Channels: N/A
Search Banks: N/A
Priority Channels: N/A
Scan Speed: N/A
Search Speed: N/A
Increment Steps: Continuos
Scan Delay: N/A
Voltage: 115VAC or 115VDC
Current Drain: 620 mA
Aerial Input: Hi-Z / ?
Dimensions (W*H*D): 457 x 320 x 489 mm
Weight: 25 Kg
Manufactured: USA, 19xx-19xx (Discontinued)
Other:
Related Documents: Manual (7.64 MB)
Schematic (456 kb)
