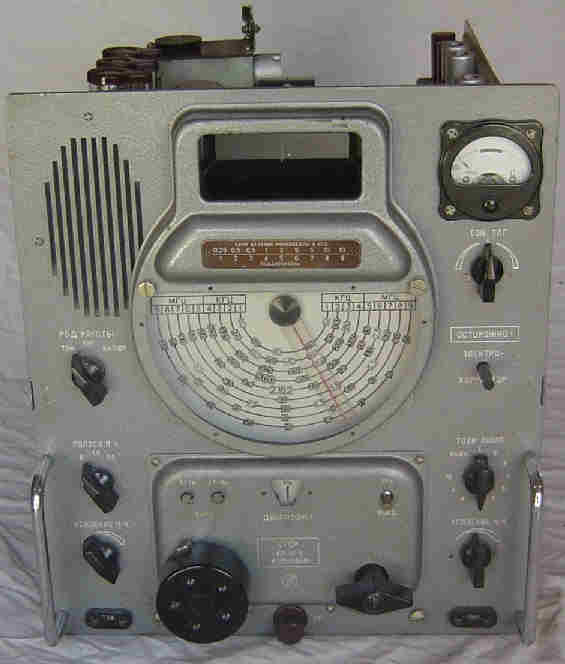

Volna K1

Type: HF Receiver
Frequency Range: Band 1: 12-60 kHz
Band 2: 100-180 kHz
Band 3: 180-330 kHz
Band 4: 300-600 kHz
Band 5: 600-1100 kHz
Band 6: 1.1-1.6 MHz
Band 7: 5.0-9.0 MHz
Band 8: 9.0-15.0 MHz
Band 9: 15-23 MHz
Modes: AM/CW
Memory Channels: N/A
Search Banks: N/A
Priority Channels: N/A
Scan Speed: N/A
Search Speed: N/A
Increment Steps: N/A
Scan Delay: N/A
Voltage: 110-120 VAC or 28 VDC
Current Drain: ?
Aerial Input: ? ohms
Dimensions (W*H*D): 12 x 15 x ?? inch
Weight: 87 lbs
Manufactured: Russia: 1959-1985
Other:
Related Documents:
