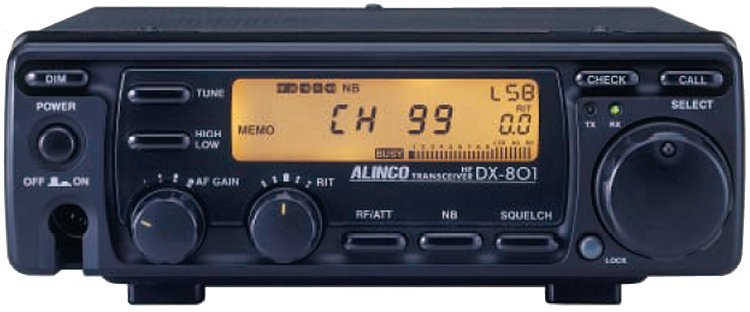

Alinco DX-801
| Type: |
Private Mobile Radio |
| Frequency Range: |
TX: 1.6-30 MHz
RX: 0.5-30 MHz |
| Mode: |
AM/FM/SSB (GMSK digital voice mode option) |
| RF Power output: |
AM Hi: 40 W, Lo: 4 W
FM/SSB Hi: 100 W, Lo: 10 W |
| Sensitivity: |
AM (10 dB S/N)
0.5-1.8 MHz: 10 uV
1.8-30 MHz: 2 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
SSB (10 dB S/N)
0.5-1.8 MHz: 1 uV
1.8-30 MHz: 0.25 uV |
| Selectivity: |
AM/FM: 9 KHz (-6 dB), 20 KHz (-50 dB)
SSB: 2.4 KHz (-6 dB), 4.5 KHz (-60 dB) |
| Image rejection: |
>70 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 1.2 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
178*58*228 mm |
| Weight: |
2.7 Kg |
| Manufactured: |
2004-200x |
