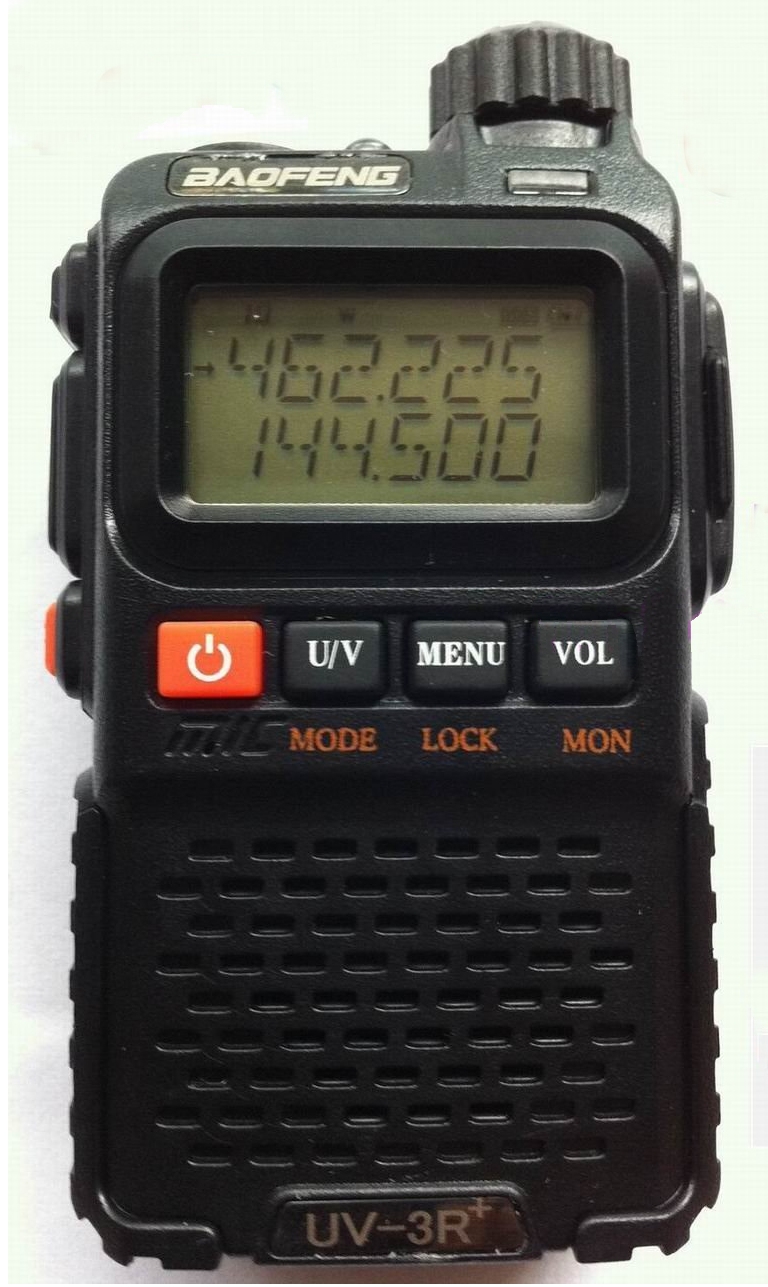

Baofeng UV-3R+
| Type: |
Private Mobile Radio |
| Frequency Range: |
TX/RX: 136-174/400-470 MHz
RX: 87-108 MHz |
| Memories: |
99 |
| Mode: |
FM |
| Frequency Steps: |
5/6.25/10/12.5/20/25 kHz |
| RF Power output: |
3 W |
| Voltage: |
3.7 VDC (Li-ion Battery) |
| Current Drain: |
RX: Max ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms SMA |
| Dimensions (W*H*D): |
47 x 81 x 23 mm |
| Weight: |
130 gr |
| Manufactured: |
20xx-20xx |
| Other: |
DCS/CTCSS
Dual Band Display |
| Related Documents: |
User Manual (1.03 MB) |
 |
