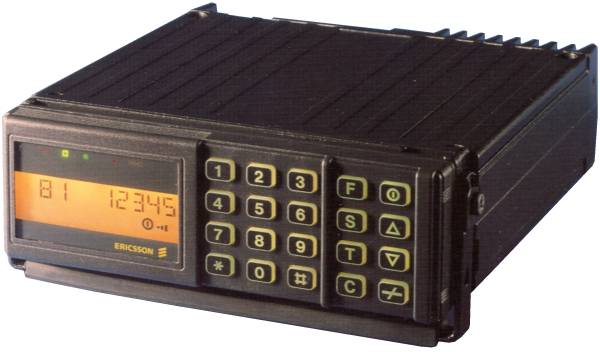

Ericsson C705
| Type: |
Private Mobile Radio |
| Frequency Range: |
380-470 MHz |
| Mode: |
FM |
| RF Power output: |
Hi: 20 W
Lo: 2 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 500 mA
TX: Max 5 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
200*176*52 mm |
| Weight: |
1.7 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
