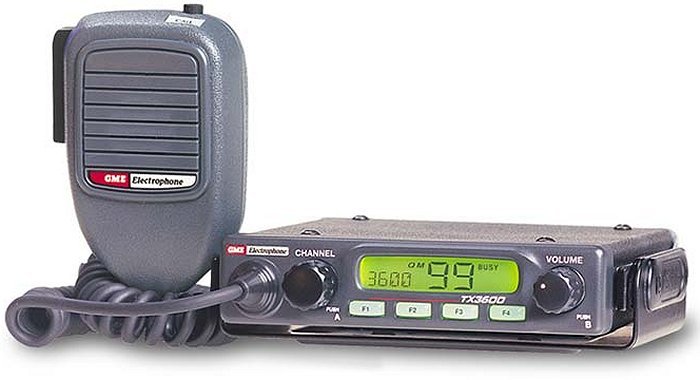

GME TX-3600
| Type: |
Private Mobile Radio |
| Frequency Range: |
450-520 MHz (12.5 / 25 KHz steps) BW=5 MHz |
| Mode: |
FM |
| RF Power output: |
Hi: 5 W
Lo: 1 W |
| Sensitivity: |
-122 dBm (12 dB SINAD unweighted) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
10-16 VDC |
| Current Drain: |
RX: 190-750 mA
TX: Max 1.7 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
128*29*117 mm |
| Weight: |
? Kg |
| Manufactured: |
Australia, 200x-200x |
| Other: |
CTCSS & CCIR Selcall. Scanning. Alpha-tags. DTMF. Detachable head. |
