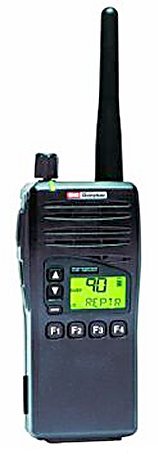

GME TX-7200
| Type: |
Private Mobile Radio |
| Frequency Range: |
450-520 MHz (12.5 / 25 KHz steps)
Also 20 RX-only channels between 403-520 MHz |
| Mode: |
FM |
| RF Power output: |
Hi: 5 W
Lo: 1 W |
| Sensitivity: |
-122 dBm (12 dB SINAD unweighted) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
7.2 VDC internal or 6-9 VDC external |
| Current Drain: |
RX: ? mA
TX: 0.8-1.8 A |
| Aerial Input: |
50 ohms, TNC |
| Dimensions (W*H*D): |
63*135*40 mm |
| Weight: |
390 gr |
| Manufactured: |
Australia, 200x-200x |
| Other: |
CTCSS & CCIR Selcall. |
