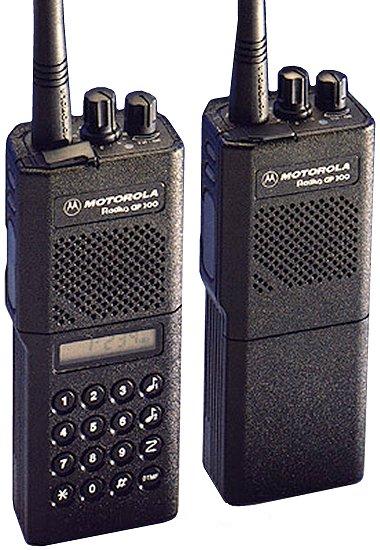

Motorola GP-300

Type: Private Mobile Radio
Frequency range
depending on version:
136-162 MHz
146-174 MHz
403-433 MHz
438-470 MHz
465-495 MHz
Mode: FM
RF Power output: Up to 5 W (depending on version and programming)
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 7.5 VDC NiCad battery
Current Drain: RX: ? mA
TX: Max ? A
Aerial Input: 50 ohms, proprietary connector (adapter to BNC is available)
Dimensions (W*H*D): 59*140*40 mm (with battery)
Weight: 509 gr (with battery)
Manufactured: 199x-199x
Other: CTCSS or 5-tone CCIR depending on version
2, 8 or 16 channels.
