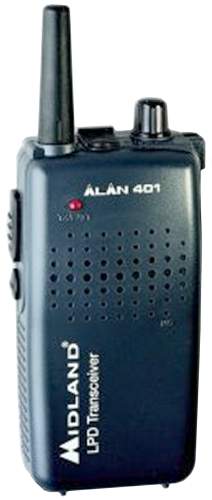

Type: | License-free VHF transceiver |
Frequency Range: | 1 channel in the 433.075-434.775 MHz segment |
RF Power output: | Max 10 mW ERP |
Voltage: | 4.8-6.0 VDC (4*LR03) |
Current Drain: | RX: Max ? mA, TX: Max 70 mA |
Dimensions (W*H*D): | 45*122*33 mm |
Weight: | 98 gr (without batteries) |
Manufactured: | 199x-200x |
Other: | |
Related Documents: |
