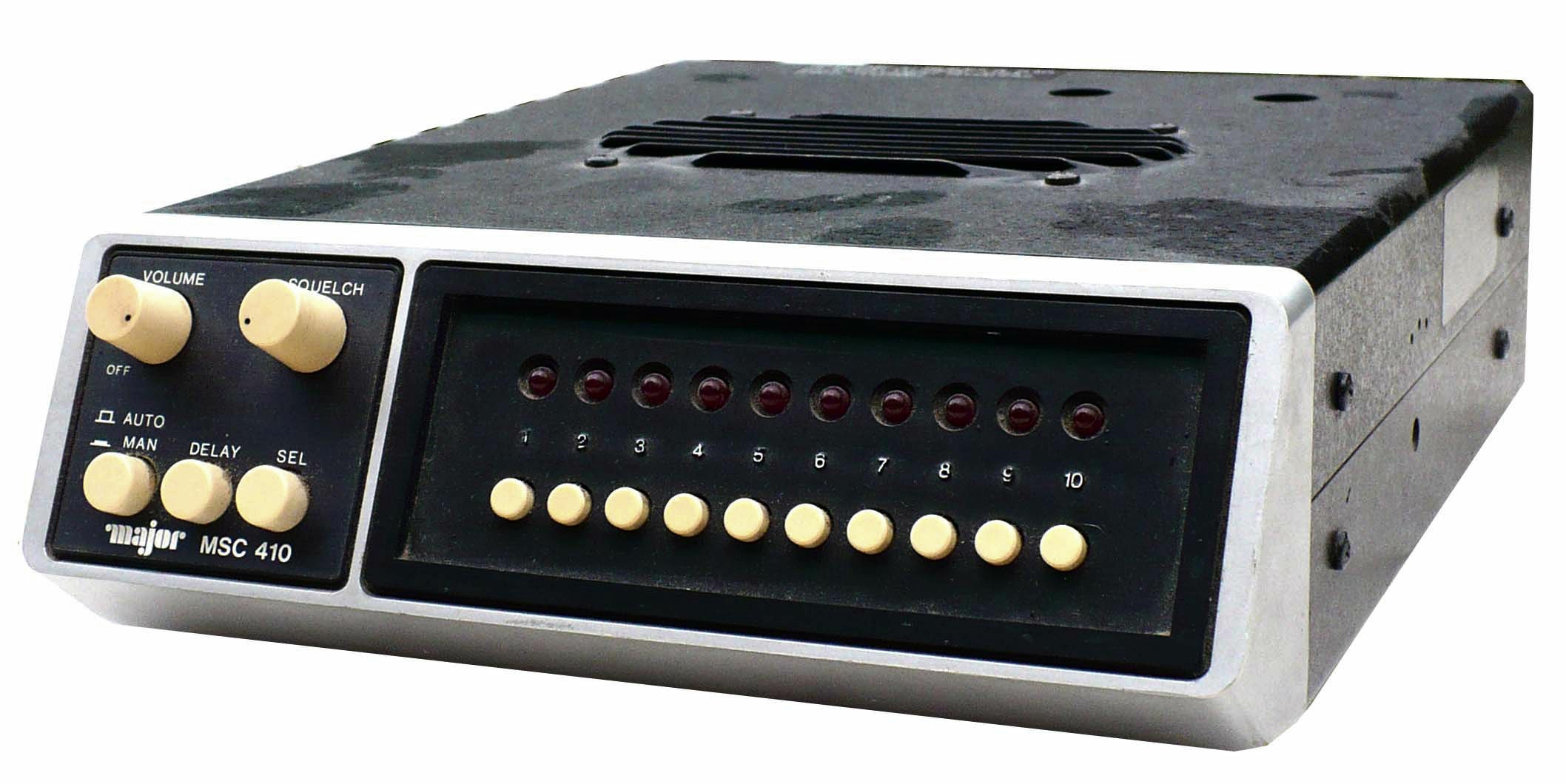

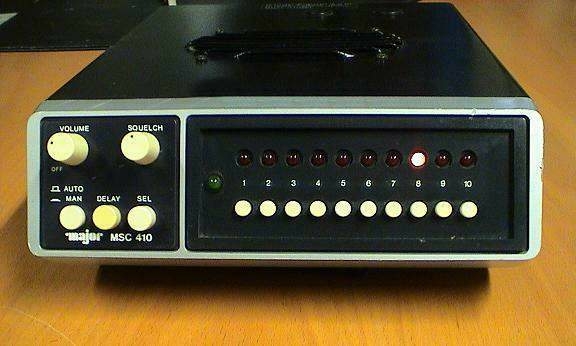

Major MSC 410

Type: VHF/UHF/Receiver/Scanner
Frequency Range: 77-87 / 150-174 / 450-470 MHz
Modes: FM
Memory Channels: 10 (Crystals)
Search Banks: N/A
Priority Channels: N/A
Scan Rate: 30 ch/s
Search Rate: N/A
Frequency Steps: N/A
Scan Delay: 1 Second
Voltage: 220 VAC / 13,8 V DC neg. gnd
Current Drain: 11 watt
Aerial Input: VHF and UHF 50 Ohm each
Dimensions: 210(W) x 75(H) x 270(D) mm
Weight: Approx 2,4 kg
Manufactured: Japan about 1980
Other: The frequency range can be chosen per channel by using a small 3-way switch
So there are ten 3-way switches inside the receiver.
Related Documents: - WANTED ! - User Manual (??? KB)
