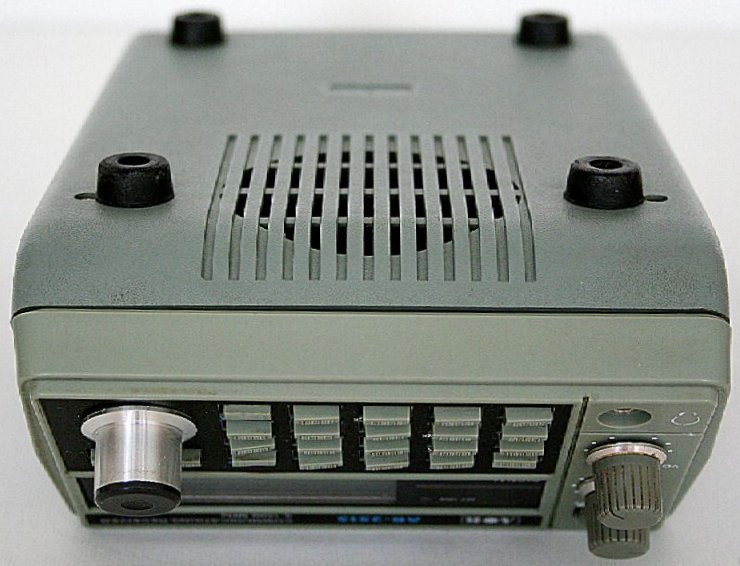

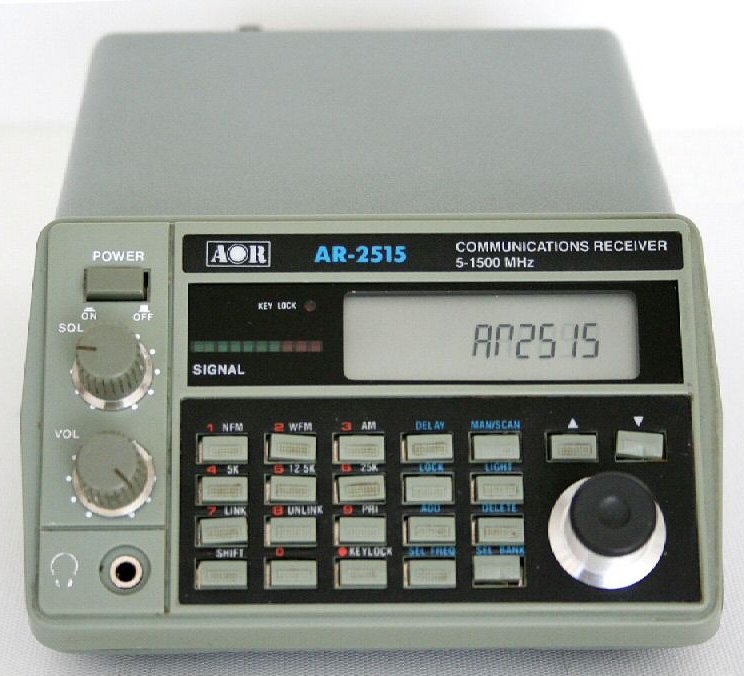

AOR AR-2515

Type: HF/VHF/UHF Receiver/Scanner
Frequency Range: 5-1500 MHz (5/12.5/25 KHz steps)
Modes: AM/FM/WFM
Memory Channels: 1984 (62 Banks of 32 memory slots)
Search Banks: 12
Priority Channels: N/A
Scan Speed: N/A
Search Speed: N/A
Increment Steps: 5 / 12.5 / 25 KHz
Scan Delay: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 12-14 VDC
Current Drain: N/A
Aerial Input: 50 Ohms, BNC
Dimensions: 138(W) x 80(H) x 200(D) mm
Weight: 1.2 Kg
Manufactured: 1985-19xx

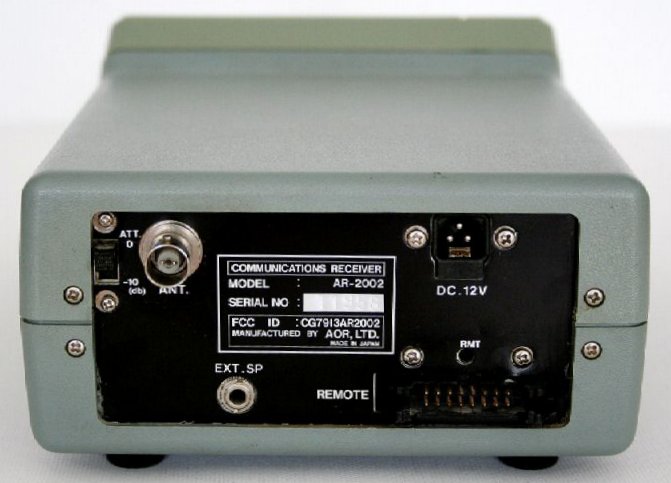

Other: 'ACE Communications' took the AR2002 replaced main CPU
and other logic items with something a little more impressive
and called it the AR2515. It was unique to them and not sold by AOR
Related Documents: User Manual (373 KB)
