AOR AR-2300


Type: HF/VHF/UHF Receiver/Scanner
Frequency Range: 0.04-3150 MHz
(Cellular blocked in the US)
Modes: AM/FM/WFM/SSB/CW (APCO P-25 option)
Memory Channels: 2,000 channels (50 channels x 40 banks)
Scan Speed: Approx.100 channels/steps per second.
Search Speed: N/A
Increment Steps: 1Hz to 999.999kHz in 0.001kHz increments
Delay: N/A
Sarch Banks: N/A
Priority Channels: 1 (one)
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 11-14 VDC
Current Drain: Stand-by : 200mA
Max. Audio; 1.2A

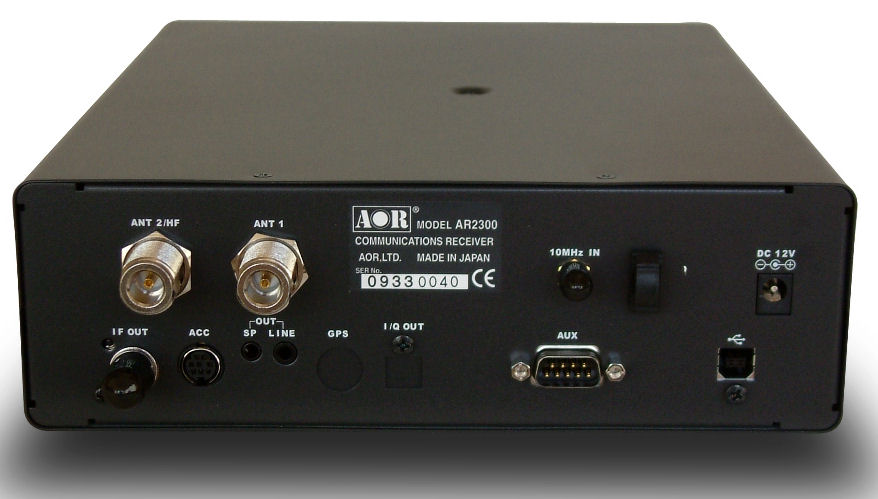

Aerial Input: 50 ohms, 2 N-type sockets
Dimensions: 220(W) x 70(H) x 285(D) mm
Weight: 3kg. (6.6 lb.)
Manufactured: Japan, 2010-20xx
Other: PC/Windows-controlled. USB and RS-232C ports
SD-card slot. 45 MHz IF output. I/Q output option
Related Documents: Leaflet (0.98 MB)
