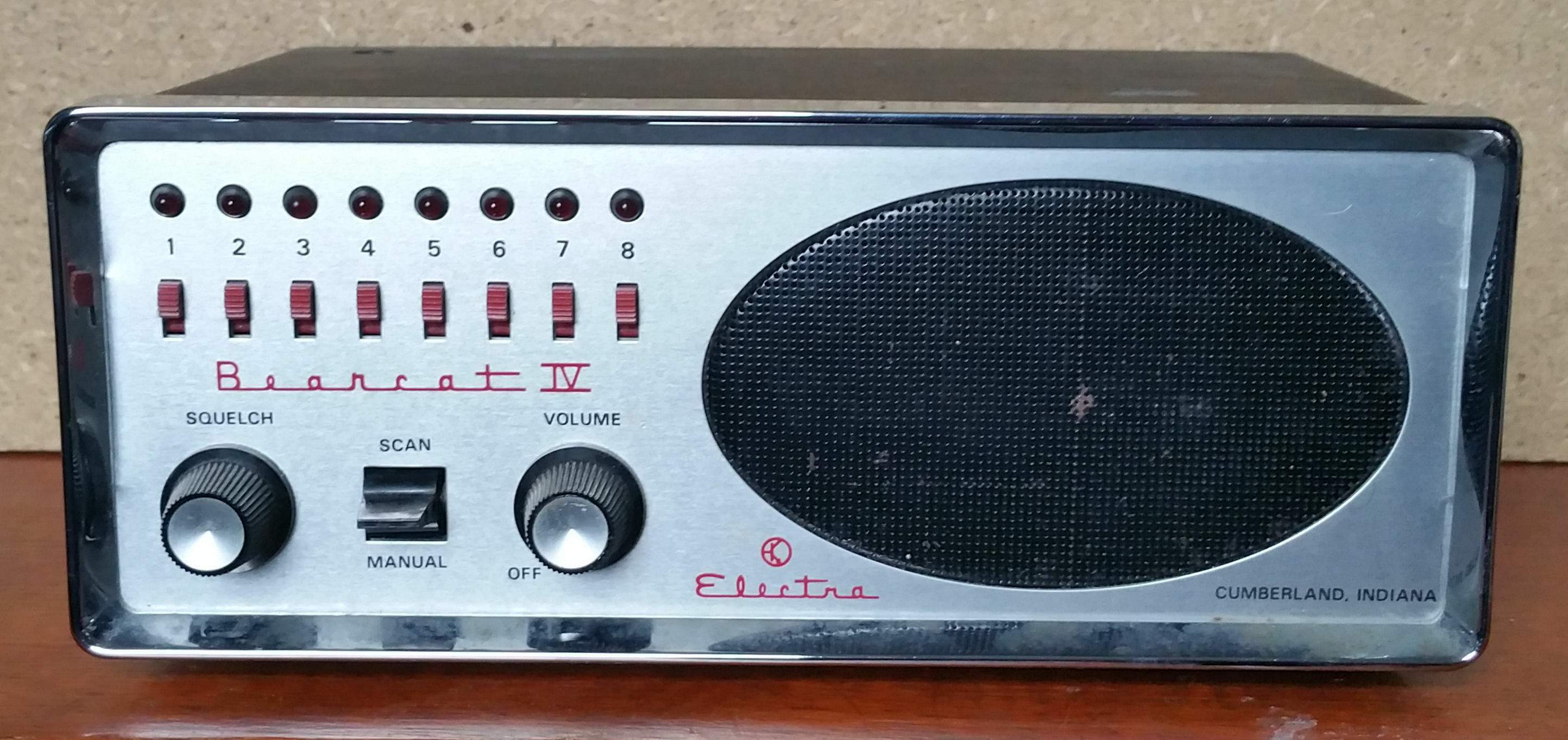

Bearcat IV (by Electra Company) (Bought S/H)
| Type: |
VHF Scanner (Crystal) |
| Frequency Range: |
30-50 / 150-174 / 450-512 MHz |
| Memories: |
8, Xtal |
| Frequency of crystals: |
1: 155.370 MHz
2: 155.640 MHz
3: 155.790 MHz
4: 155.850 MHz
5: 155.985 MHz
6: 156.210 MHz
7: 156.800 MHz
8: 159.580 MHz |
`
| Modes: |
FM |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
120V or 13.8V DC |
| Current Drain: |
Max ? mA |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
197x-197x |
| Serial Number: |
2 2 7 7 7 |
| Modifications: |
Converted to 12V only, (Removed AC Transformer)
(Rewired Pin Connections + Power Lead) |
| Other: |
Imported From - Lilburn, Georgia, USA (12-Nov-08) |
| Related Documents: |
Owner's Manual (34 Kb) |

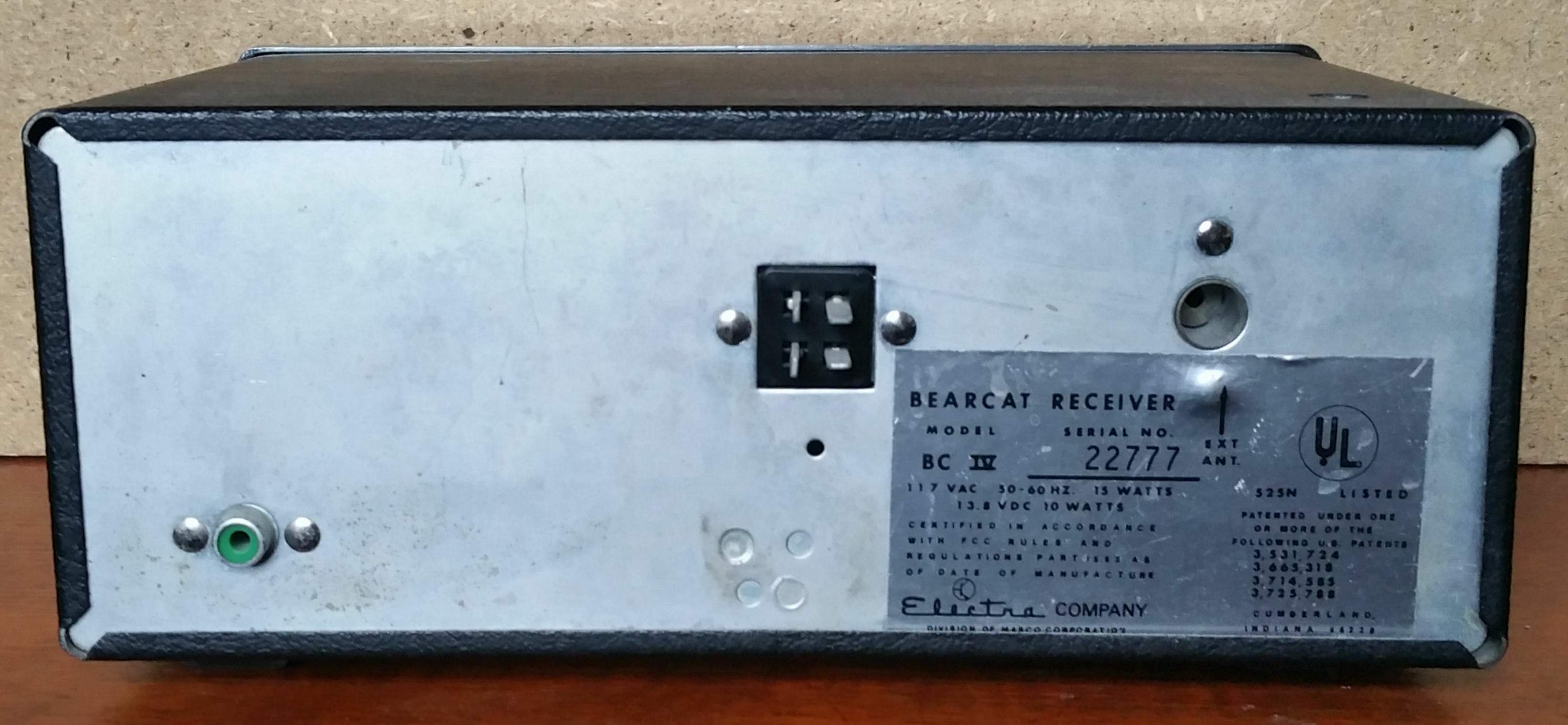

Rear Panel:
 |
