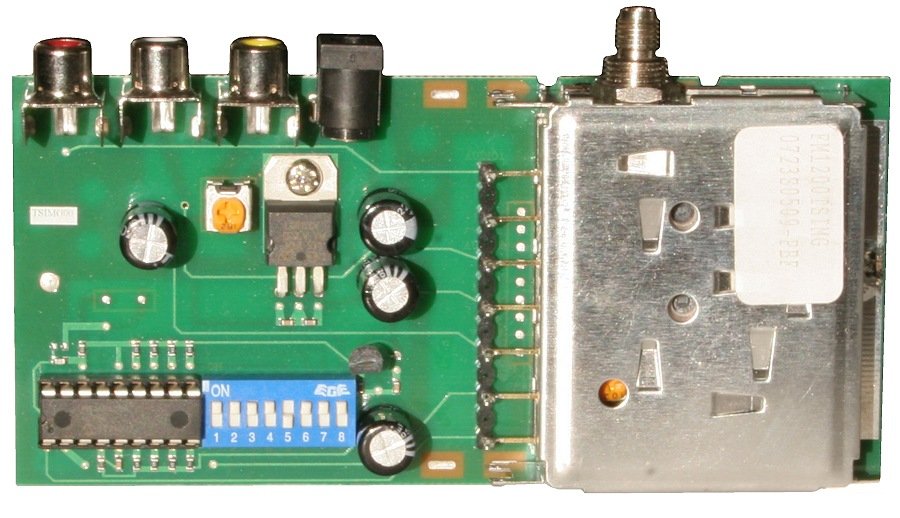

Comtech FM1200TSIMG
| Type: |
Amateur UHF ATV Transmitter |
| Frequency Range: |
1240-1367.5 MHz (500 KHz steps) (With DTECH custom PIC16F628A) |
| Modes: |
FM-video, Audio sub-carriers 6.0 and 6.5 MHz |
| RF Power Output: |
50 mW |
| Voltage: |
12-15 VDC |
| Current Drain: |
Max 500 mA |
| Impedance: |
75 ohms, SMA |
| Dimensions (W*H*D): |
124*18*59 mm |
| Weight: |
70 gr |
| Manufactured: |
Taiwan, 2007-2009 (Discontinued) |
| Other: |
Demo board, ready to use. No pre-emphasis.
New price 2009 in the UK: £36.00 |
| Related Documents: |
Modulator Datasheet (412 KB)
Dip Switch Settings (7 KB) |
|
