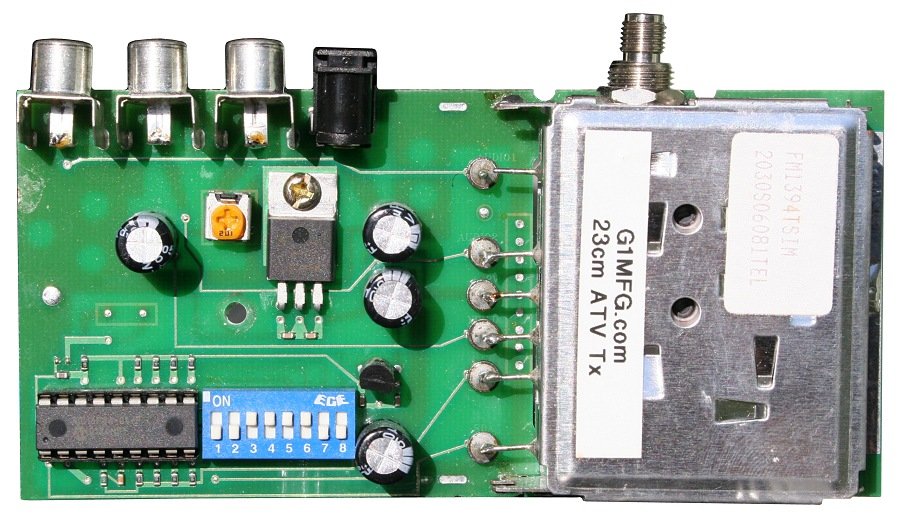

Comtech FM1394TSIM

Type: Amateur UHF ATV Transmitter
Frequency Range: 1240-1367.5 MHz (500 KHz steps) (With G1MFG custom PIC16F84)
Modes: FM-video, Audio sub-carriers 6.0 and 6.5 MHz
RF Power Output: 50 mW
Voltage: 12-15 VDC
Current Drain: Max 500 mA
Impedance: 75 ohms, SMA
Dimensions (W*H*D): 124*18*59 mm
Weight: 70 gr
Manufactured: Taiwan, 2001-200x (Discontinued)
Other: Demo board, ready to use. No pre-emphasis
Related Documents: Modulator datasheet (71 KB)
