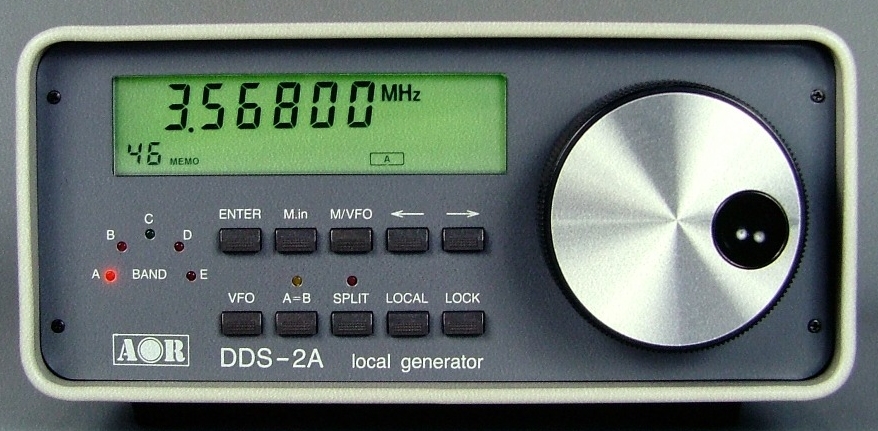

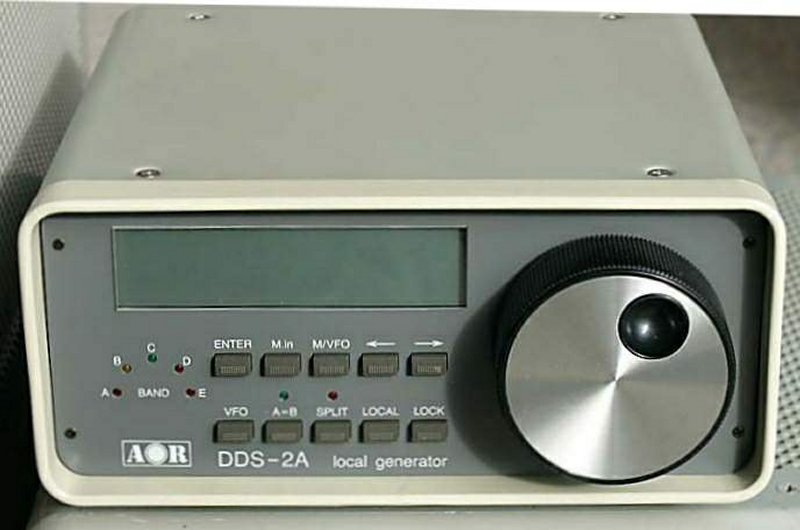

AOR DDS-2A

Type: Digital External Local Generator
Frequency Range: HFO 6.550 - 32.950 MHz
VFO 2.695 - 2.495 MHz
Frequency Stability: Less than 5PPM
Output Levels: HFO 2.0 - 2.3V RMS @ 50 ohm
VFO 2.0 - 2.3V RMS @ 100 ohm
1.5 - 1.7V RMS through BPF
Spurious & Noise Attenuation: HFO > 70dBc @ 1kHz - 25 kHz from the carrier frequency

> 75dBc @ 26kHz - 250kHz the carrier Frequency

VFO > 80dBc @ 1kHz - 25 kHz from the carrier Frequency

>90dBc @ 25kHz to 250kHz from the carrier frequency
Phase noise Attenuation: >130dBc/Hz @ 25kHz (VFO) from the carrier Frequency
External Power Source: 12.0 - 13.8 VDC @ 600mA - Less than 5mV ripple contents
Dimensions: 80 mm (H) x 180 mm (W) x 181 mm (D)
Weight: 1.9 kg (unit only)
Manufactured: 200x-200x
Other:
Related Documents:

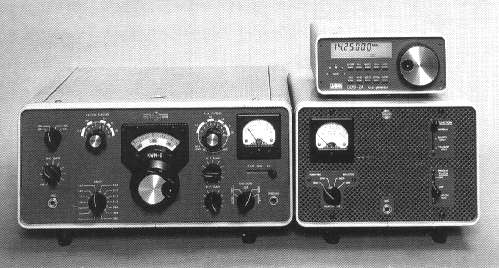

THE AOR DDS-2A External VFO in use with a Collins KWM-2:
