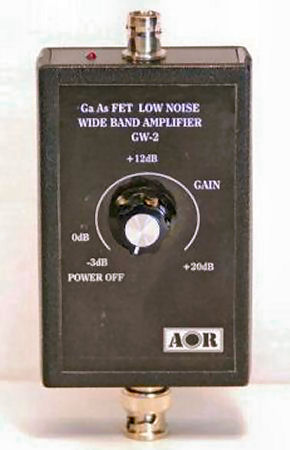

AOR GW-2

| Type: |
GaAs FET Low Noise Wide Band Amplifier |
| Useful Frequency Range (from table): |
0 MHz to1400mHz |
| Input/output Impedance: |
50 Ohms |
| Gain: |
20dB Nominal (-3 to +20 adjustable) |
| Input Level: |
-5dBm Max. |
| Output Level (1dB compression) : |
-4dBm |
| Noise Figure (Typical): |
1.5dB |
| Power Reqirements: |
9V (PP3 Battery) |
| Other: |
|
| Related Documents: |
|
|
