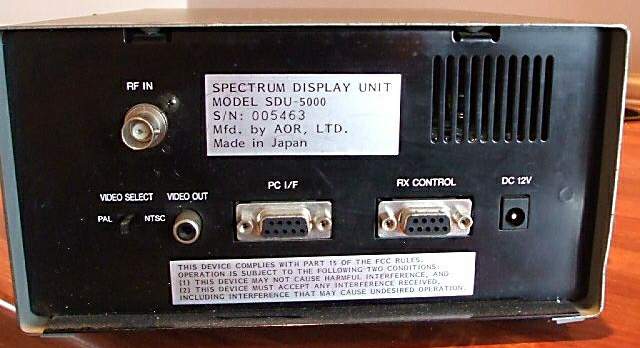

AOR SDU-5000



Type: Spectrum Display Unit
Input Frequency: 10 MHZ
Sweep Width: 0 to 10 MHZ(1kHz steps)
Frequency accuracy: 600Hz
Resolution: 5 or 30 kHz
Reference level: -10 or -40dBm
Maximum input level: -10dBm
Plot Mode: Outline or Paint
Display mode: Upper / Lower
Dimensions: 95mm(H) x 190mm(W) x 255mm(D) approx
Weight: 1950g approx
Other:
Related Documents: User Manual (414 KB)
Hawk 5000 Software Manual (224 KB)
