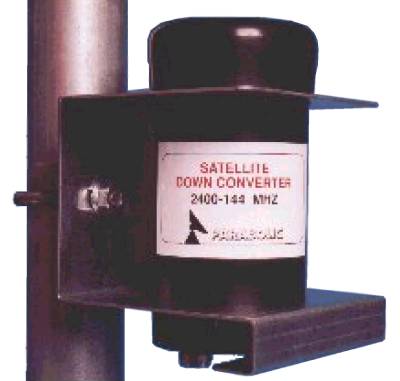

Parabolic Mode-S
| Type: |
UHF Receiving Converter |
| Frequency Range: |
2400-2404 MHz |
| IF: |
144-148 MHz |
| Gain: |
30 dB |
| Noise figure: |
Max 1.0 dB |
| Voltage: |
11.5-15.5 VDC |
| Current Drain: |
300 mA |
| Aerial Input: |
50 ohms. N-type |
| Dimensions (W*H*D): |
75*150 mm (excl. mast clamp) |
| Weight: |
? Kg |
| Manufactured: |
Sweden, 199x-200x (By Labetech) |
| Other: |
HEMT input stage and helix filters. Built-in crystal oven.
DC supplied via coax. Intended primarily for Oscar 40 |
