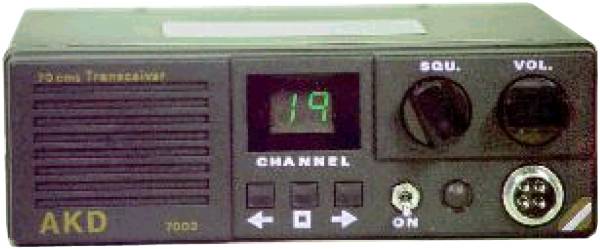

AKD 7003
| Type: |
Amateur UHF transceiver |
| Frequency Range: |
432.500-434.975 MHz (100 channels/25 KHz spacing) |
| Mode: |
FM |
| RF Power output: |
3 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: Max 750 mA |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
185*60*200 mm |
| Weight: |
825 gr |
| Manufactured: |
UK, 19xx-19xx |
| Other: |
New price 2000 in the UK: £195.00 |
