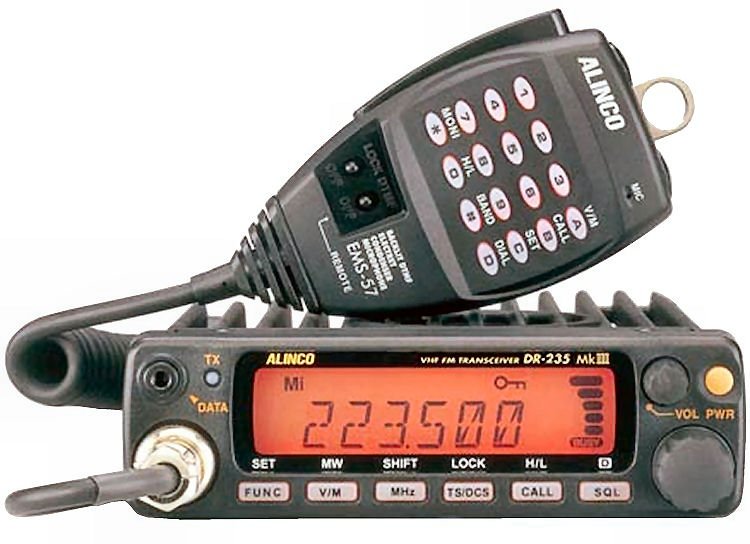

Alinco DR-235T MKIII
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
TX: 222-225 MHz
RX: 216-278 MHz
(5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz steps)
(After modification: RX/TX 200-299.995 MHz depending on VCO alignment) |
| Modes: |
FM/NFM |
| RF Power output: |
Hi: 25 W
Mid: 10 W
Lo: 5 W |
| Sensitivity: |
0.25 uV (12 dB SINAD) |
| Selectivity: |
FM: 12 KHz (-6 dB), 28 KHz (-60 dB)
NFM: 6 KHz (-6 dB), 14 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 600 mA
TX: Max 8 A |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
142*40*174 mm |
| Weight: |
1.0 Kg |
| Manufactured: |
Japan, 2007-200x |
| Other: |
101 memories. CTCSS, DCS and DTMF. 1K2/9K6 TNC option. Theft alarm
Digital voice board option (requires at least two similarly equipped radios) |
| Related Documents: |
|
| Modifications: |
Frequency Expansion (14.6 KB) |
|
