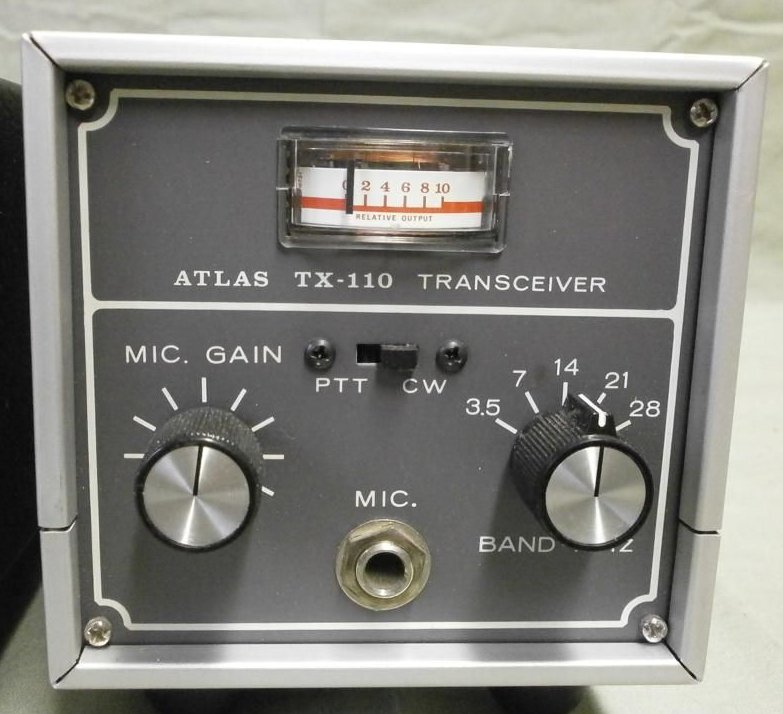

Atlas TX-110 Module
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-80 m |
| Mode: |
AM/SSB |
| RF Power output: |
N/A |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12-14 VDC |
| Current Drain: |
RX: 0.5 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
9 x 3.4 x 9" |
| Weight: |
7 lbs |
| Manufactured: |
USA, 199x-199x |
| Other: |
N/A |
| Related Documents: |
Manual (36.0 MB) |

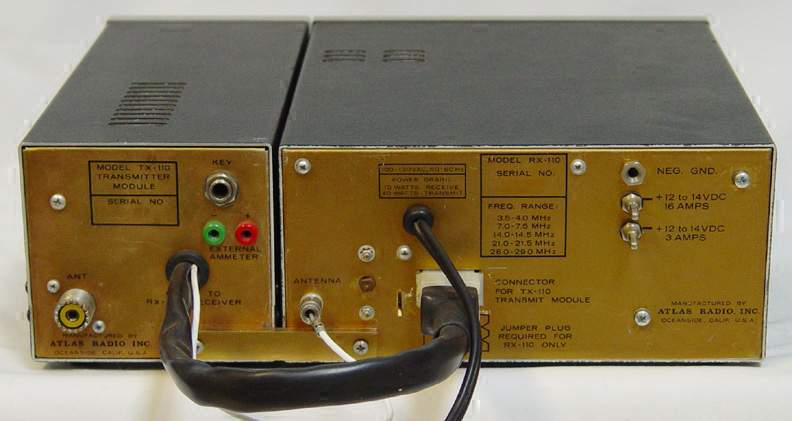

Coupled With RX-100:
 |
