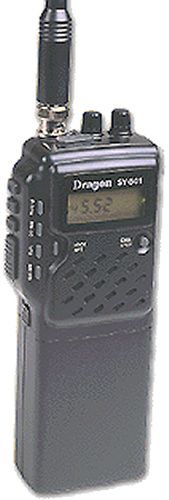

Dragon SY-501
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
TX: 144-146 MHz
RX: 136-174 MHz |
| Mode: |
FM |
| RF Power output: |
Hi: 5 W
Lo: 350 mW |
| Sensitivity: |
0.18 uV (12 dB SINAD) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
6-16 VDC |
| Current Drain: |
RX: 16-55 mA
TX: Max ? A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
xxxx-xxxx |
| Other: |
|
| Related Documents: |
|
|
