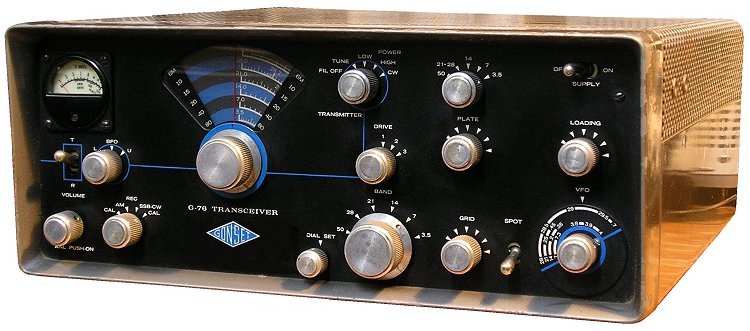

Gonset G-76

Type: Amateur HF/VHF transceiver
Frequency Range: 10-80 m/6 m
Mode: RX: AM/SSB/CW
TX: AM/CW
RF Power output: 60 W
Sensitivity: 1 µV (6dB S/N)
Selectivity: 3 KHz (-6 dB), 14 KHz (-60 dB)
Image rejection: 15-80 m: >50 dB
Voltage: External PSU (12 VDC or Mains)
Current Drain: RX: Max 4.7 A @ 12.6 VDC
TX: Max ? A
Aerial Input: 50 ohms
Dimensions (W*H*D): ? mm
Weight: 11 Kg
Manufactured: USA, 19xx-196x
Other: XTAL or VFO. Noise limiter. 100 KHz calibrator. 6DQ5 final
New price 1961: $376.25
Related Documents: User Manual (3.44 MB)
Schematics (1.27 MB)
