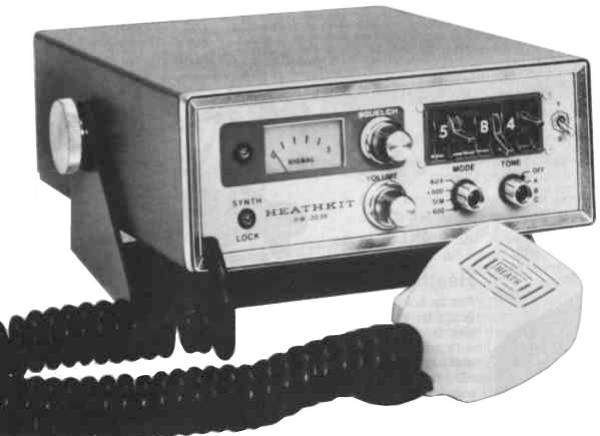

Heathkit HW-2036
| Type: |
Amateur Transceiver |
| Frequency Range: |
143.5-148.5 MHz |
| Modes: |
FM |
| RF Power Output: |
10 W |
| Voltage: |
12.6-16 VDC |
| Current Drain: |
RX: 0.7 A, TX: Max 2.6 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
210*70*249 mm |
| Weight: |
3.2 Kg |
| Manufactured: |
197x-197x (Late seventies) |
| Other: |
|
| Related Documents: |
|
|
