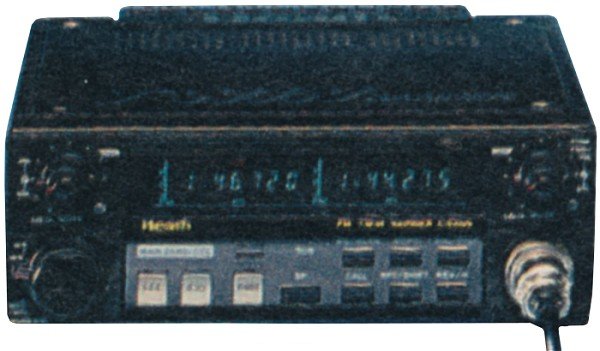

Heathkit HW-24
| Type: |
Amateur Transceiver |
| Frequency Range: |
144-148 / 438-450 MHz
(5 / 10 / 12.5 / 20 / 25 KHz Steps) |
| Modes: |
FM |
| RF Power Output: |
Hi: 10/10 W
Lo: 1/1 W |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 600 mA
TX: Max 3.4 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
150*50*180 mm |
| Weight: |
1.8 Kg |
| Manufactured: |
Japan, 198x-199x by Standard/Marantz (Discontinued) |
| Other: |
20 Memories with scanning. DTMF, CTCSS/PL. Twin RX |
