| Type:
|

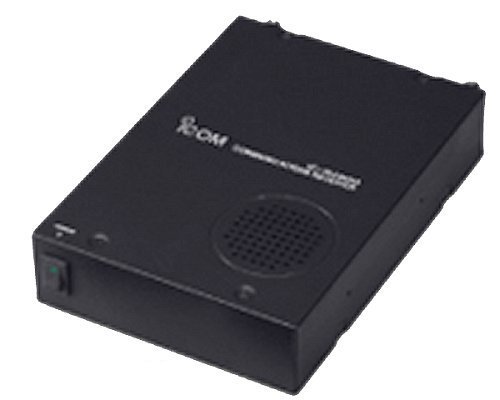

Computer controlled HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.01-3300 MHz |
| Modes: |
AM/FM/WFM/SSB/CW (No AM/SSB/CW above 1300 MHz) |
Memory Channels: |
Main Unit: 2600
Controller: 1100 (including 100 Scan Edges) |
| Voltage: |
12 VDC |
| Current Drain: |
Max 1.2 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
Main Unit: 146 x 41 x206
Controller: 140 x 50 x 27.5 mm |
| Weight: |
Main Unit: 1.35 kg
Controller: 0.25 kg |
| Manufactured: |
2005-200x |
| Other: |
CTCSS/DTCS. DSP option (UT-106). Windows software for
computer control via USB connector
Also sold with a separate control panel as ICR2500 |
| Related Documents: |
User Manual (9.0 MB)
|
