| Type:
|

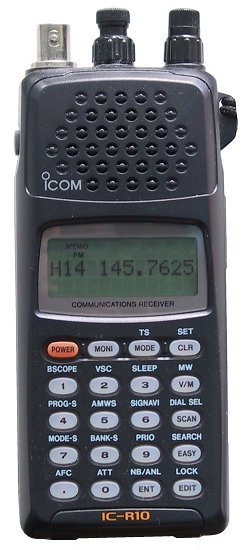

HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.5-1300 MHz (0.1-100 KHz steps) |
| Modes: |
AM/FM/WFM/SSB/CW |
| Sensitivity: |
AM
0.5-5 MHz: 1.6 uV
5-200 MHz: 1.0 uV
200-340 MHz: 1.6 uV
340-700 MHz: 1.4 uV
700-800 MHz: 2.0 uV
800-1300 MHz: 1.6 uV
FM
0.5-5 MHz: 0.5 uV
5-200 MHz: 0.32 uV
200-340 MHz: 0.45 uV
340-700 MHz: 0.35 uV
700-800 MHz: 0.79 uV
800-1300 MHz: 0.5 uV
WFM
75-200 MHz: 1.0 uV
200-340 MHz: 2.2 uV
340-700 MHz: 1.3 uV
700-800 MHz: 2.0 uV
800-900 MHz: 1.6 uV
SSB/CW
0.5-5 MHz: 0.4 uV
5-200 MHz: 0.25 uV
200-340 MHz: 0.4 uV
340-700 MHz: 0.32 uV
700-800 MHz: 0.63 uV
800-1300 MHz: 0.4 uV
|
| Selectivity: |
AM/FM: >15 KHz (-6 dB)
WFM: >150 KHz (-6 dB)
SSB: >4 KHz (-6 dB) |
| Image rejection: |
N/A |
| Voltage: |
4.8-6 VDC (4*R6/AA) or 4.8-16 VDC external |
| Current Drain: |
38-180 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
58*130*31 mm |
| Weight: |
310 gr |
| Manufactured: |
Japan, 1996-1999 |
| Other: |
1000 memories. CI-V. VSC. Bandscope |
