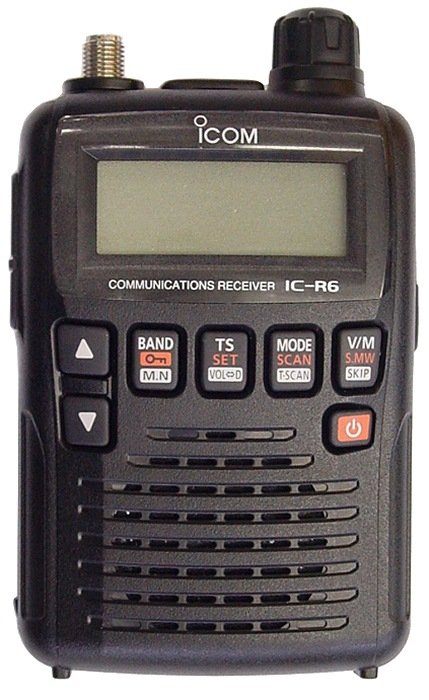

Icom IC-R6
| Type: |
HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.100-1310 MHz
(Cellular blocked in the USA) |
| Modes: |
AM/FM/WFM |
| Mermories: |
1350 |
| Frequency Steps: |
5, 6.25, 8.33, 9, 10, 12.5, 15, 20,
25, 30, 50, 100, 125, 200 KHz |
| Scan Rate: |
N/A |
| Voltage: |
2.4-3 VDC (2*R6/AA)
4.5-6.3 VDC external |
| Current Drain: |
30-130 mA |
| Aerial Input: |
50 ohms, SMA
(Ferrite bar antenna for MW) |
| Dimensions: |
58(W) x 86(H) x 30(D) mm |
| Weight: |
200 gr (With Antenna and Batteries) |
| Manufactured: |
Japan, 2010-20xx |
| Other: |
VSC, CTCSS & DTCS
PC-programmable via USB |
| Related Documents: |
User Manual (4.4 MB) |
|
