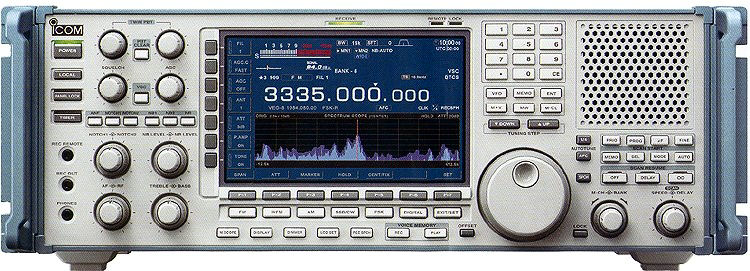

| Type: |
HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.005-3335 MHz |
| Modes: |
AM/AM-Sync/FM/WFM/SSB/CW/FSK (APCO P25 digital option,
UT-122) |
| Sensitivity: |
AM (10 dB S/N)
0.1-1.8 MHz: 6.3 uV
1.8-30
MHz: 1 uV
30-3335 MHz: 1.4 uV
FM (12 dB
SINAD)
1.8-30 MHz: 0.5 uV
30-3335 MHz: 0.5
uV
WFM (12 dB SINAD)
30-3335 MHz: 1.4
uV
SSB/CW/FSK (10 dB S/N)
0.1-1.8 MHz: 0.5
uV
1.8-30 MHz: 0.16 uV
30-3335 MHz: 0.32 uV
|
| Selectivity: |
AM (BW=6 KHz)
>6 KHz (-3 dB), <15 KHz
(-60 dB)
FM (BW=15 KHz)
>12 KHz (-6 dB),
<20 KHz (-60 dB)
WFM (BW=350 Hz)
>150
KHz (-6 dB)
SSB/FSK (BW=2.4 KHz)
>2.4 KHz
(-3 dB), <3.6 KHz (-60 dB)
CW (BW=500
Hz)
>500 Hz (-3 dB), <700 Hz (-60 dB)
|
| Image rejection: |
0.1-30 MHz: >70 dB
30-3335
MHz: >50 dB |
| Voltage: |
Mains |
| Current Drain: |
70 VA |

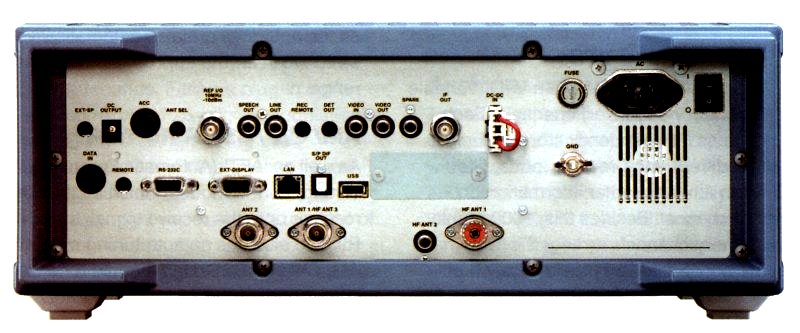

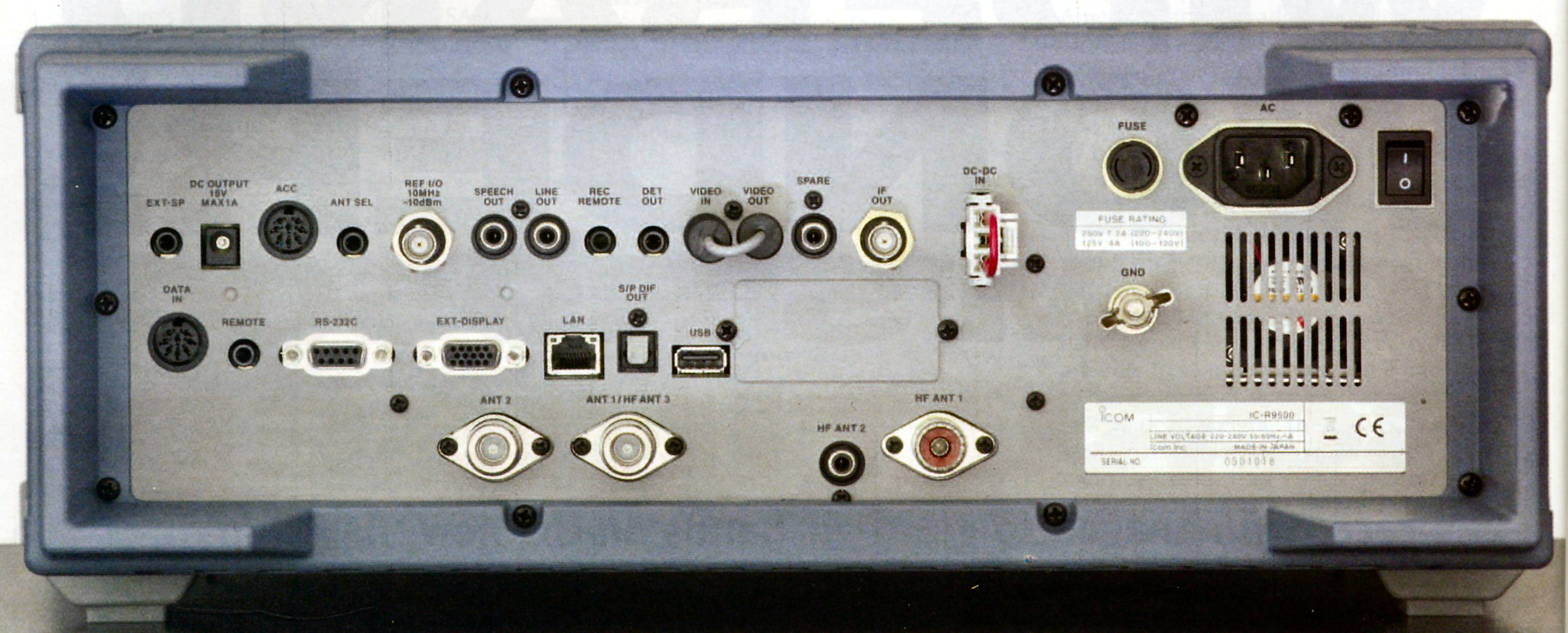

| Aerial Input: |
0.005-30 MHz: 50 ohms SO-239, 500 ohms Phono
(RCA)
30-1150 MHz: 50 ohms
N-type
1150-3300 MHz: 50 ohms N-type |
| Dimensions (W*H*D): |
424*149*340 mm |
| Weight: |
18 Kg |
| Manufactured: |
2006-200x |
| Other: |
1000 memories. Dual DSP. 7" TFT. +40 dBm IP3. Spectrum scope.
Two channel NB
Five roofing filters. DVR. VSC. Analog TV
reception (NTSC/PAL). CI-V/RS-232 |
| Related Documents: |
User Manual (8.92 MB) |
