| Type: |
HF/VHF/UHF receiver/scanner |
| Frequency Range: |
0.15-1300 MHz (Cellular blocked in the US) |
| Memories: |
1650 memories with alpha tags |
| Frequency Steps: |
5/6.25/7.5/8.33/9/10/12.5/15/20/25/30/50/100/200 |
| Mode: |
AM/FM/WFM |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 429.1 MHz
2nd IF: 19.65 MHz
3rd IF: 450 KHz |
| Sensitivity: |
AM
0.495-4.995 MHz: 2.5 uV
5-30 MHz: 1.78 uV
118-136 MHz: 1.78 uV
222-330 MHz: 1.78 uV
FM (12 dB SINAD)
1.625-5 MHz: 0.56 uV
5-30 MHz: 0.25 uV
30-118 MHz: 0.2 uV
118-175 MHz: 0.18 uV
175-330 MHz: 0.22 uV
330-430 MHz: 0.25 uV
430-450 MHz: 0.22 uV
450-470 MHz: 0.25 uV
470-1000 MHz: 0.28 uV
1000-1310 MHz: 0.35 uV
WFM (12 dB SINAD)
76-108 MHz: 0.78 uV
175-222 MHz: 1.78 uV
470-770 MHz: 2.5 uV
|
| Selectivity: |
AM/FM
>12 KHz (-9 dB), <30 KHz (-60 dB)
WFM
>150 KHz (-6 dB)
|
| Image rejection: |
N/A |
| Voltage: |

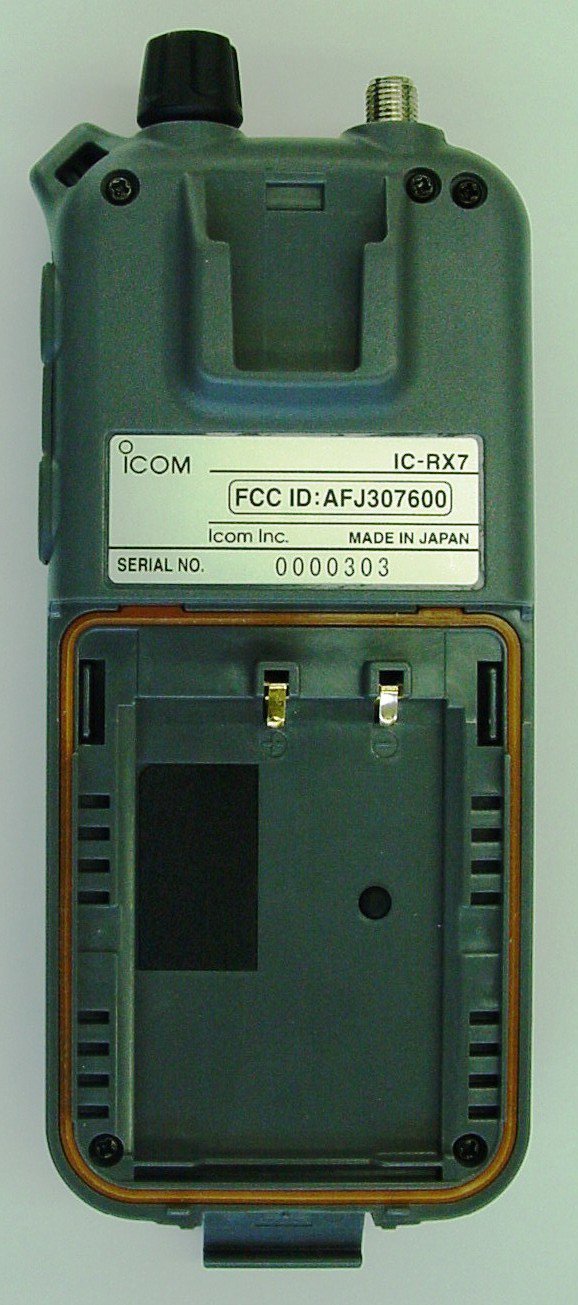

3.6-4.5 VDC (3*R6/AA or Li-Ion pack) |
| Current Drain: |
35-150 mA |
| Impedance: |
50 ohms, SMA |
| Dimensions (W*H*D): |
57*128*23 mm |
| Weight: |
200 gr |
| Manufactured: |
Japan, 2008-200x |
| Other: |
Splash resistant (IPX4). CTCSS/DTSC decoder.
VSC. Built in ferrite bar for MW reception |
| Related Documents: |
User Manual (4.49 MB) |
