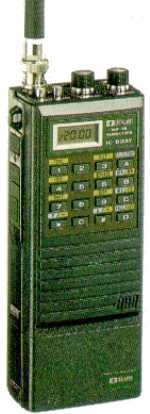

Icom IC-03AT
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
220-225 MHz (5/10/15/20/25 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 2.5 W
Lo: 0.5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 140 mA
TX: Max 1.2 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
64*130*65 mm |
| Weight: |
? gr |
| Manufactured: |
198x-198x |
| Other: |
10 memories |
