| Type:
|

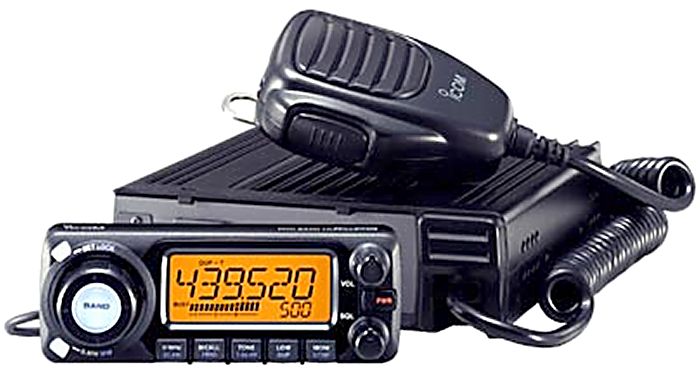

Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz (Asia)
RX: 118-1000 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 50 / 50 W
Mid: 15 / 15 W
Lo: 5 / 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
12 KHz (-6 dB), 30 KHz (-60 dB) |
| Image rejection: |
Better than 60 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: Max 11.5 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
Transceiver: 141*40*185 mm
Control head: 111*40*39 mm |
| Weight: |
1.2 Kg |
| Manufactured: |
2003-200x |
| Other: |
500 memories. CTCSS & DTMF. Multi color display. |
